Fundamentals of Aerodynamics

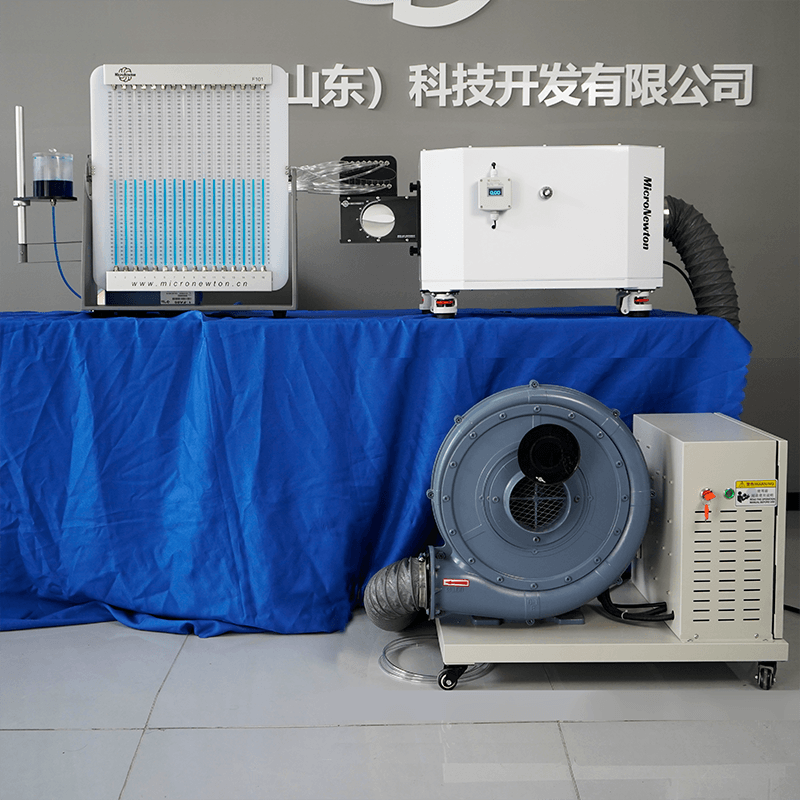

This product is designed to be used together with the Air Dynamics Basic Experimental Platform (F100) and the multi-tube manometer module (F101). It is used for experimental research on the aerodynamic characteristics of airfoil flow under low-speed conditions.
Share:
Added to cart successfully
Product Description
This product is designed to be used together with the Air Dynamics Basic Experimental Platform (F100) and the multi-tube manometer module (F101). It is used for experimental research on the aerodynamic characteristics of airfoil flow under low-speed conditions.

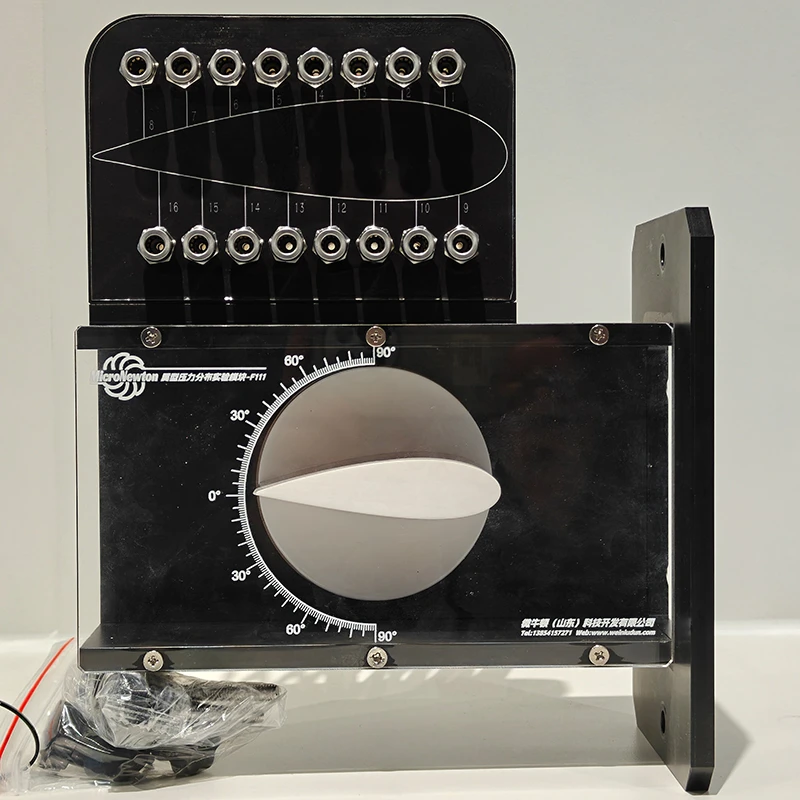

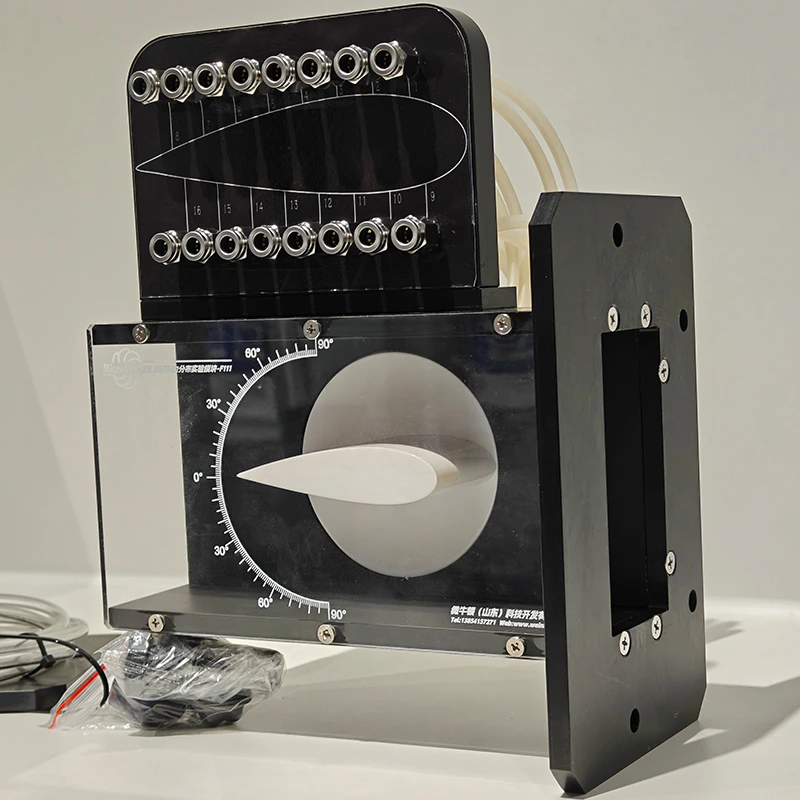

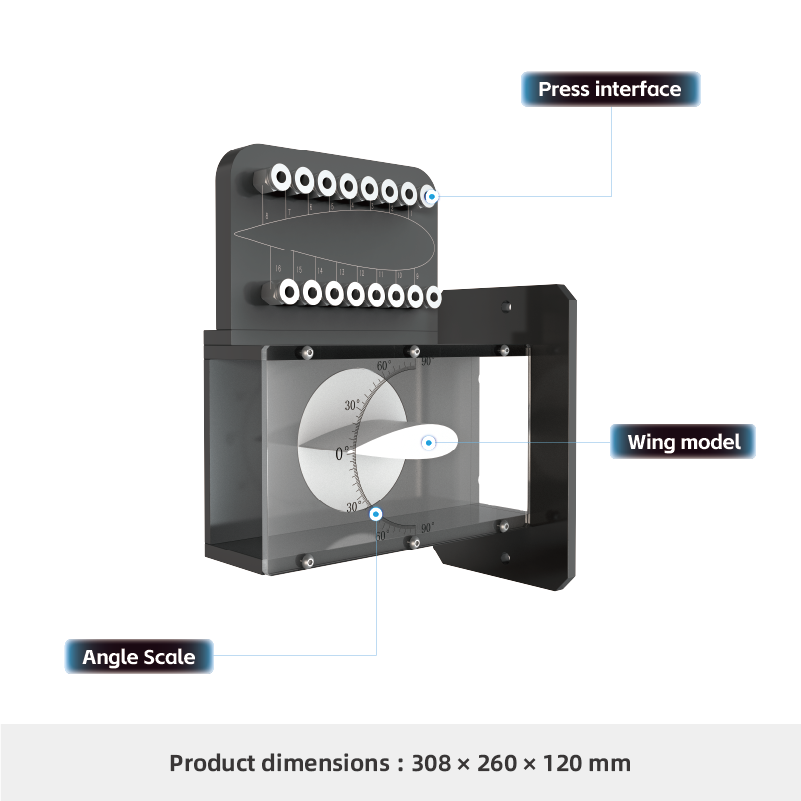

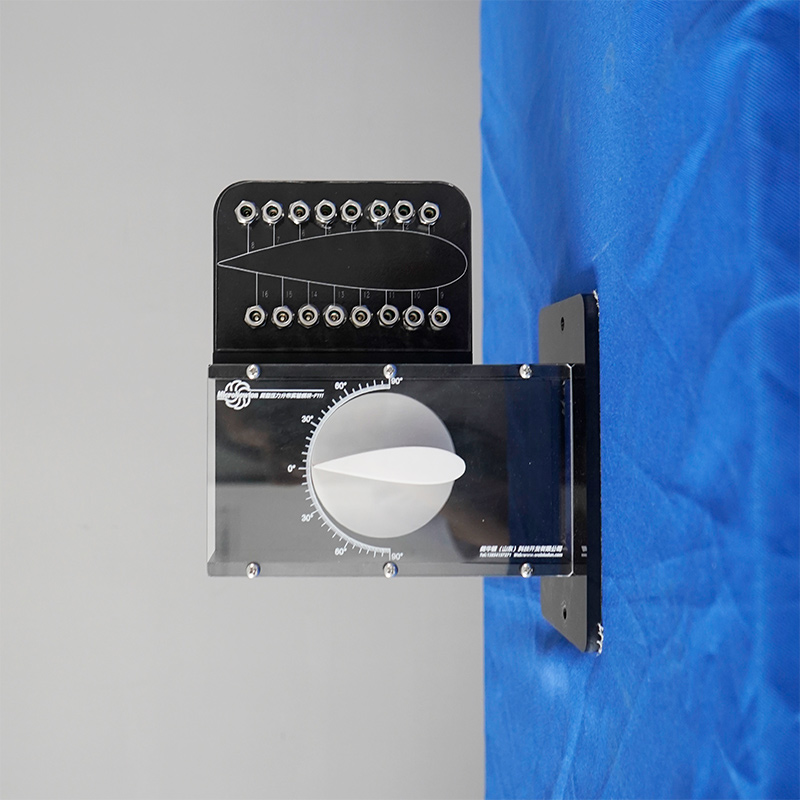

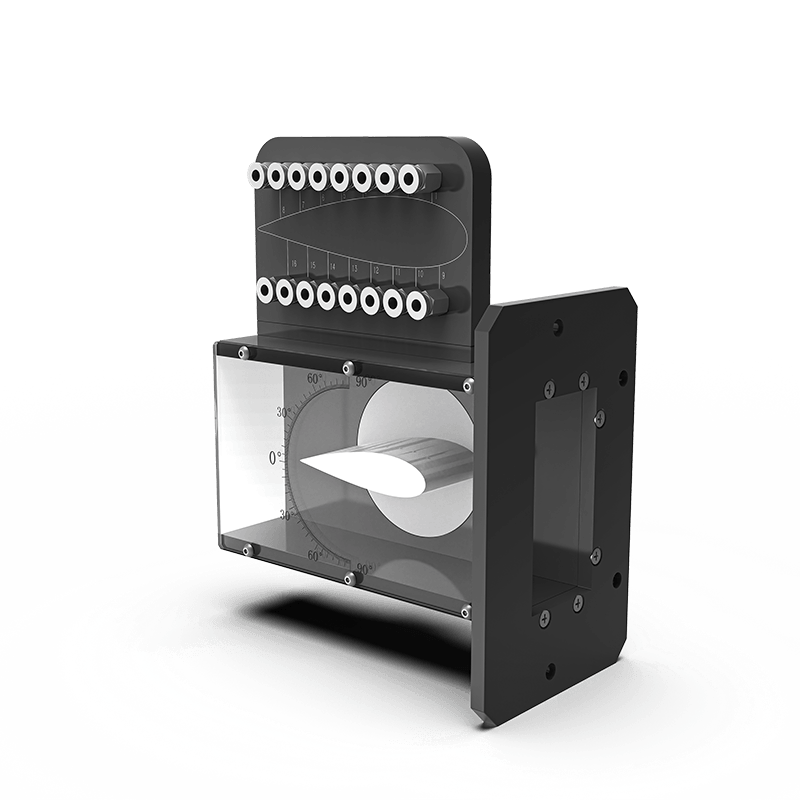

The module consists of a visual rectangular flow channel with a fixed symmetric airfoil installed inside. Pressure measuring points are evenly distributed along the chordwise direction on the airfoil surface. When connected to the multi-tube manometer, the pressure at each point can be measured to plot the pressure distribution curve.
The module also allows precise adjustment of the airfoil angle of attack during experiments.
Experimental Functions
01
Study the surface pressure distribution of an airfoil under low-speed flow conditions.
02
Understand the geometric parameters and aerodynamic parameter definitions of an airfoil.
03
Study and experimentally analyze airfoil lift-line theory.
04
Measure lift and plot the lift curve.
Product Attributes
|
Product Model |
F111 |
Product Name |
Airfoil Pressure Distribution Experimental Module |
|
Main Materials |
Black POM, transparent acrylic, white photosensitive resin |
Specifications |
308 × 120 × 261 mm |
|
Product Weight |
1.6 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Pressure tubing (10 m) |
Optional Modules |
None |
