Fluid Machinery

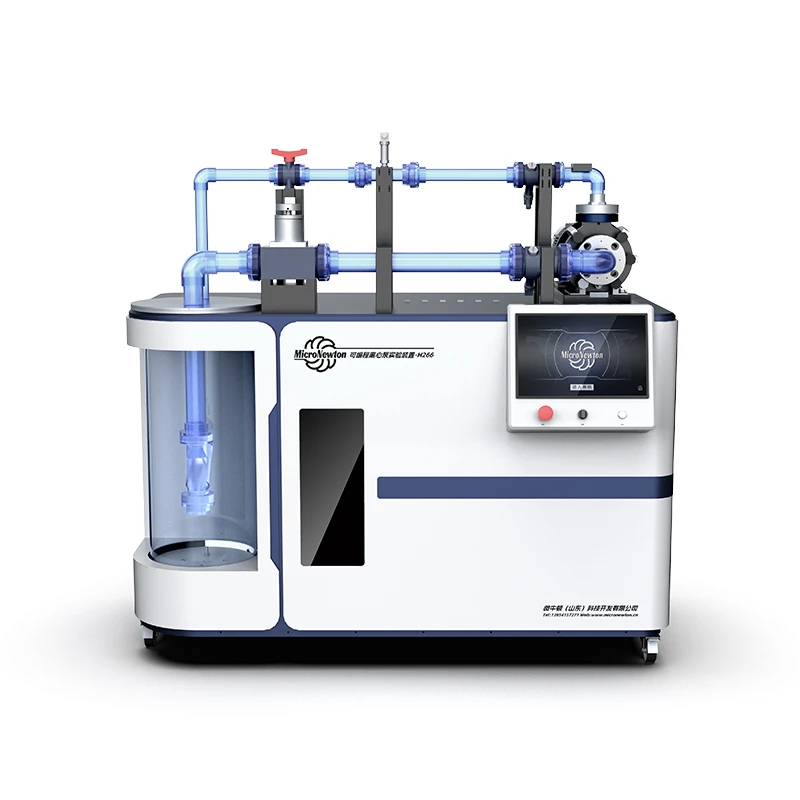

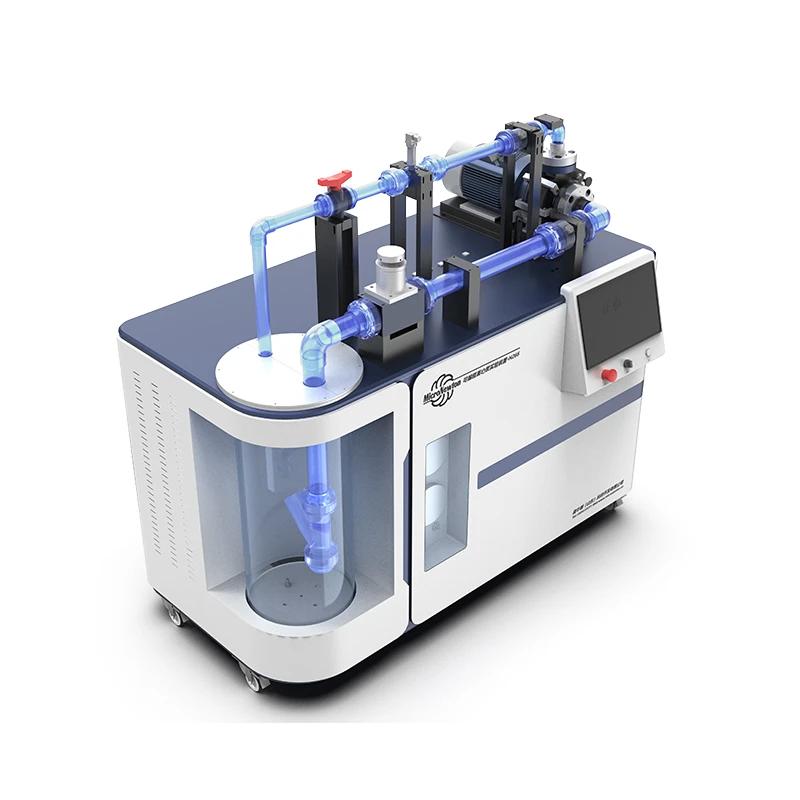

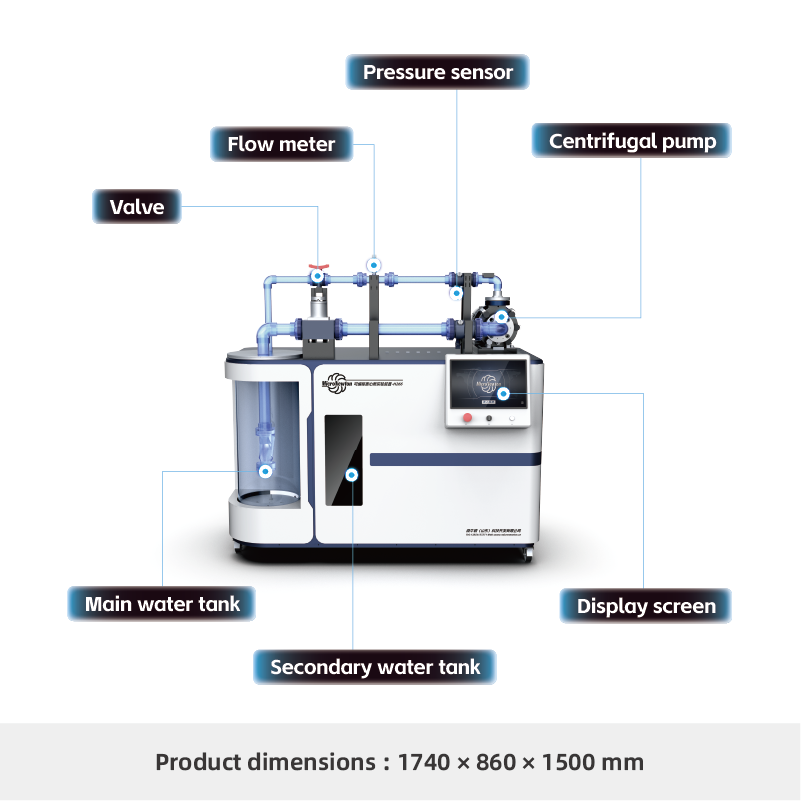

This apparatus is designed to study fluid transport and pressurization processes in Fluid Mechanics. The system consists of a centrifugal pump with interchangeable impellers, motor, circulation piping, and control valves, and is equipped with a computer-based data acquisition system for real-time monitoring of pressure, flow, and other parameters. Additionally, the apparatus integrates PID gain settings for system feedback control and regulation.
Share:
Added to cart successfully
Experimental Functions
1.Conduct mechanical analysis of turbines, study the Euler equation (turbine), the velocity triangle distribution within the impeller, and the ideal centrifugal pump performance curve.
2.Study the centrifugal pump characteristics, including actual power consumption and efficiency under different flow rates and rotational speeds.
3.With known pump speed and dimensions, study pump parameter selection, modeling, and similarity scaling.
4.Perform centrifugal pump characteristic analysis to determine the operating point under different pressures.
Product Attributes
|
Product Model |
H266 |
Product Name |
Programmable Centrifugal Pump Experimental Apparatus |
|
Main Materials |
Galvanized Sheet, 6061 Aluminum Alloy |

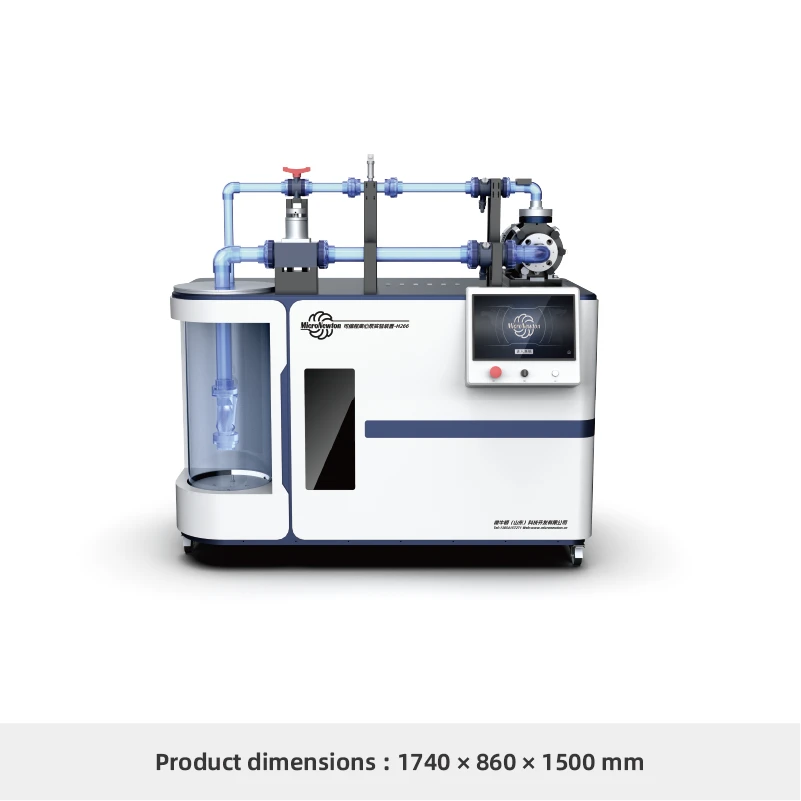

Dimensions |
1740×860×1500mm |
|
Product Weight |
145kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220 V ±5%, 50 Hz/60 Hz 110 V ±5%, 50 Hz/60 Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
