Fluid Machinery

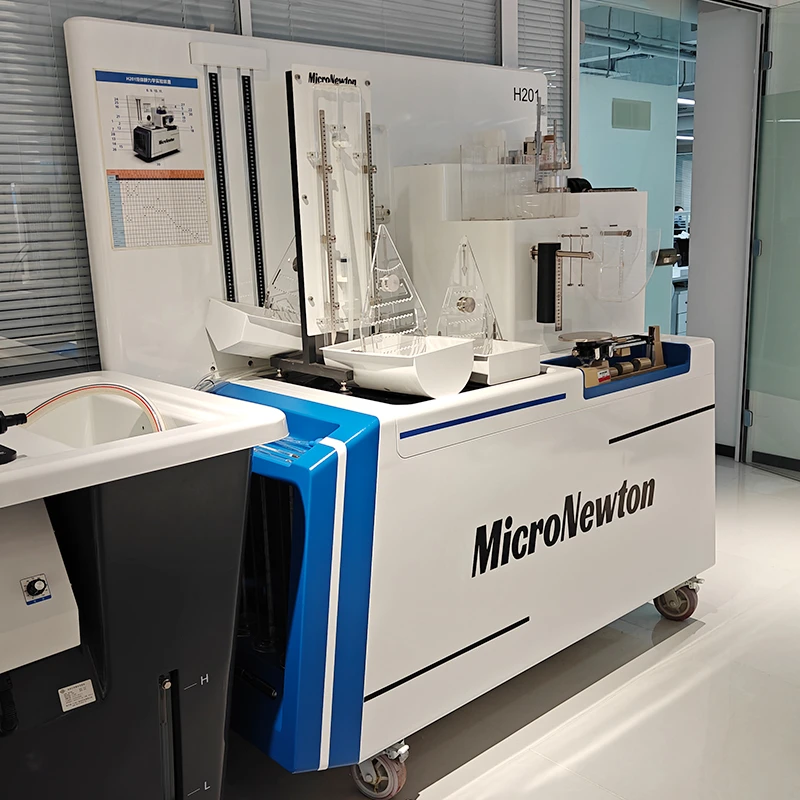

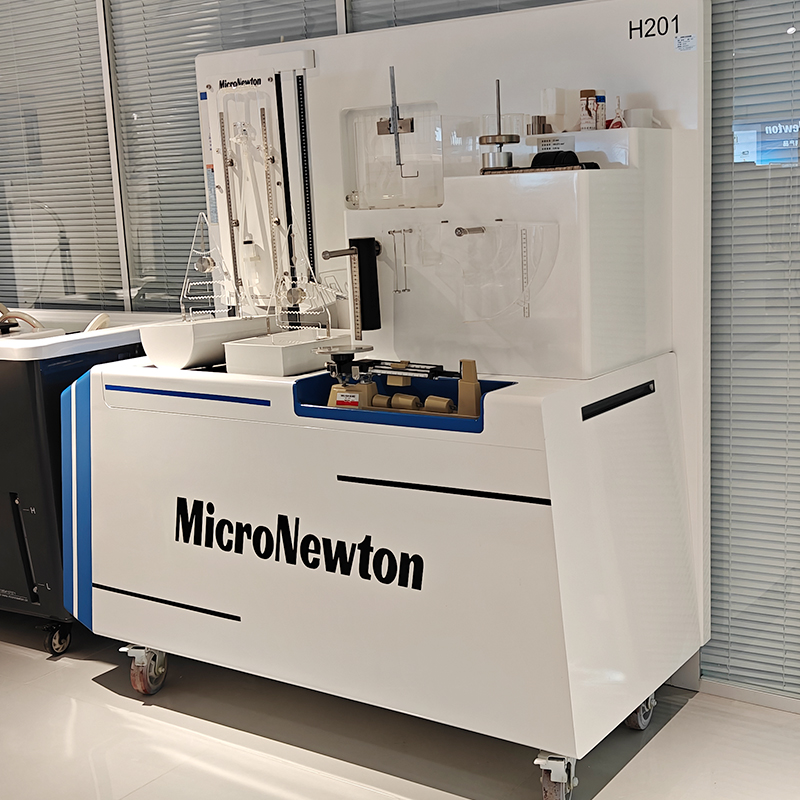

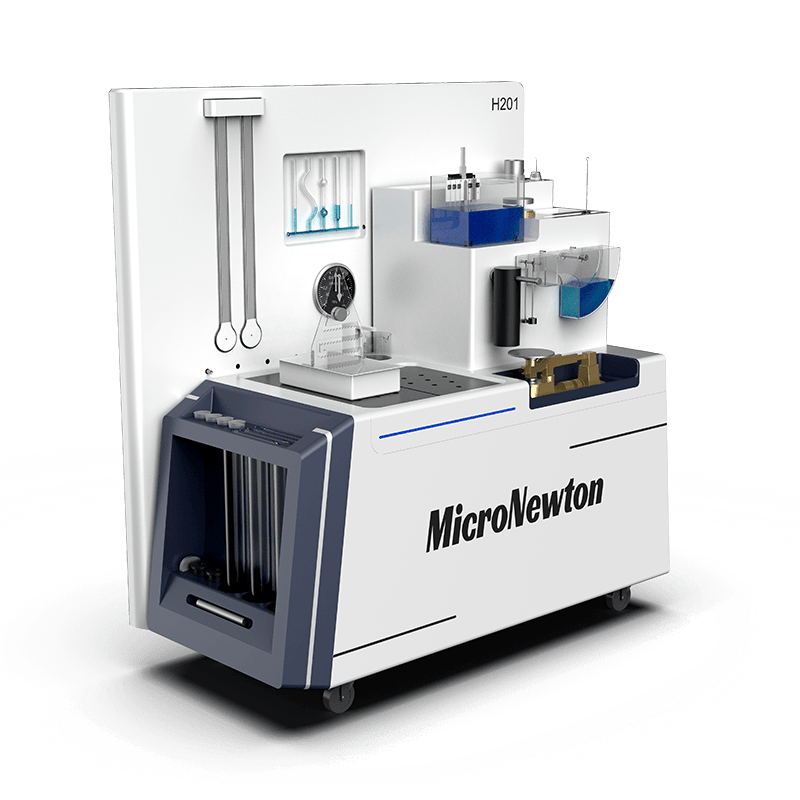

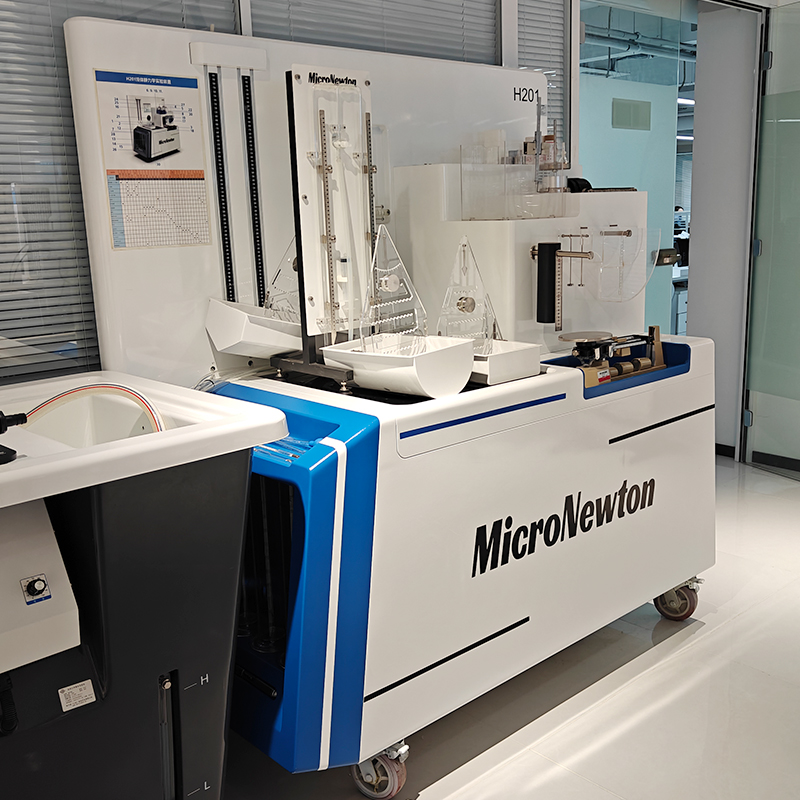

This apparatus is primarily used to study the fundamental physical concepts and basic principles in fluid statics, such as fluid density, specific gravity, viscosity, Pascal’s law, and Archimedes’ principle. It features a desktop design with a built-in water tank, requiring no external water supply. The experimental range is broad, covering topics such as buoyancy, center of pressure, Bourdon tube pressure measurement, and stability of forces.
Share:
Added to cart successfully

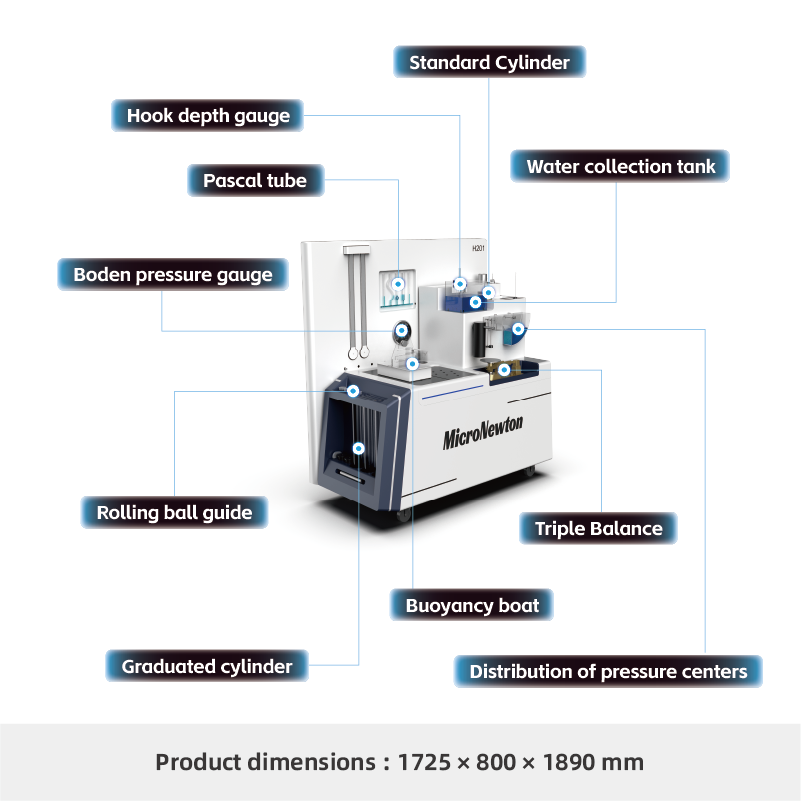

Experimental Functions
1.Measure the density and specific gravity of fluids.
2.Understand the principle and use of a hydrometer.
3.Study capillary phenomena in tubes and plates.
4.Measure fluid viscosity using the falling ball method.
5.Demonstrate and study Pascal’s law.
6.Measure liquid surface height using a vernier hook manometer.
7.Demonstrate and study Archimedes’ principle.
8.Study the stability of floating bodies and the center of stability.
9.Learn the operation and principle of a Bourdon tube pressure gauge.
10.Study the working principle of a U-tube manometer and the measuring medium.
Product Attributes
|
Product Model |
H201 |
Product Name |
Fluid Statics Experimental Apparatus |
|
Main Materials |
ABS (Acrylonitrile Butadiene Styrene) |

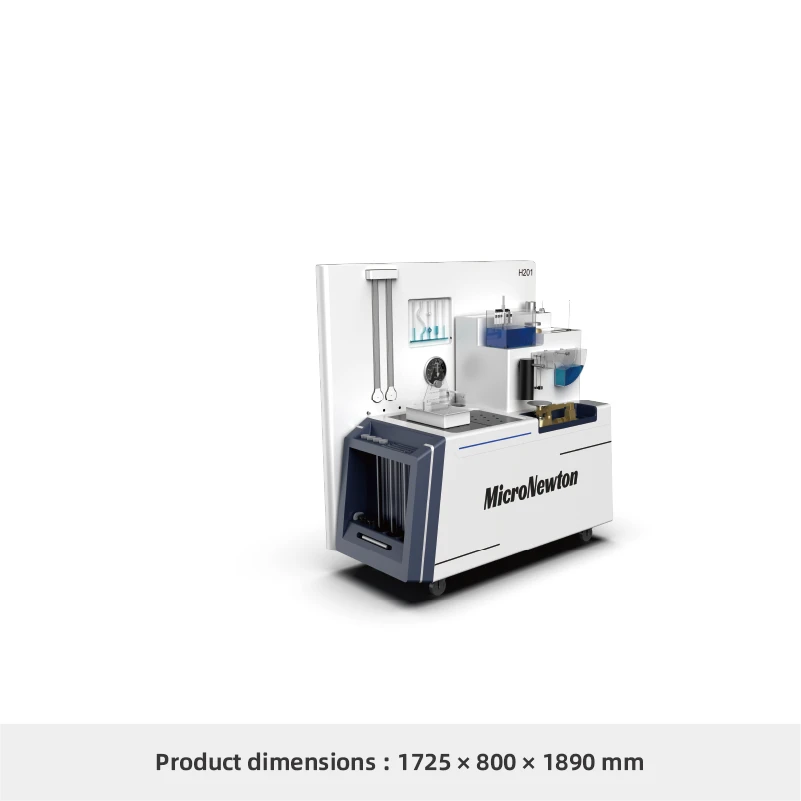

Dimensions |
1740×800×1880mm |
|
Product Weight |
172kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220 V ±5%, 50 Hz/60 Hz 110 V ±5%, 50 Hz/60 Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
