Fluid Machinery

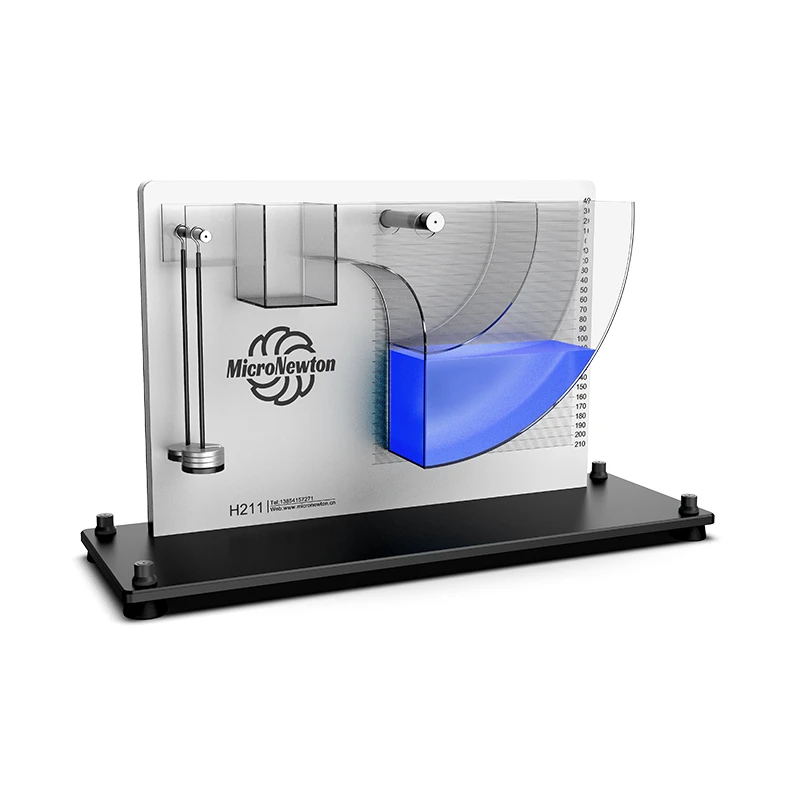

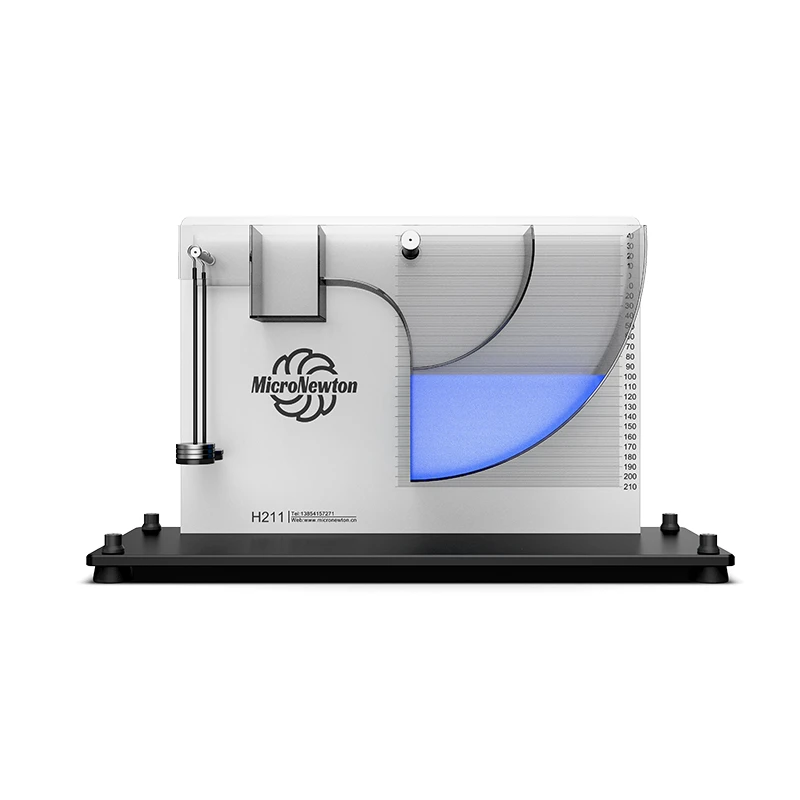

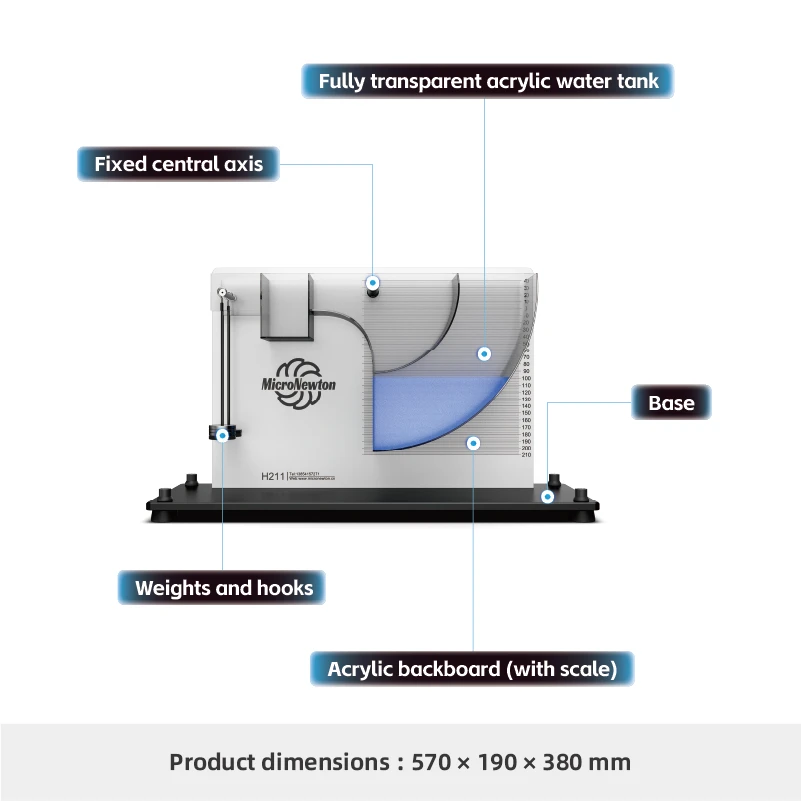

This apparatus is designed to study the relationship between liquid depth and hydrostatic pressure in Fluid Mechanics. The main body consists of a transparent sector-shaped plastic container filled with dyed purified water. The hydrostatic thrust of the water is balanced by the torque generated by weights. The device features adjustable leveling feet and a bubble level for precise horizontal positioning.
Share:
Added to cart successfully
Experimental Functions
1.The transparent design allows clear observation of the water level on the side walls.
2.Measure and study the center of pressure of the water, comparing experimental values with theoretical predictions.
3.Investigate the relationship between the hydrostatic thrust generated by fully submerged and partially submerged water.
4.Calculate the center of pressure for fully submerged and partially submerged water bodies.
Product Attributes
|
Product Model |
H211 |
Product Name |
Center of Pressure Distribution Experimental Apparatus |
|
Main Materials |
Acrylic |
Dimensions |
570×190×380mm |
|
Product Weight |
6kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220 V ±5%, 50 Hz/60 Hz 110 V ±5%, 50 Hz/60 Hz |
||
|
Required Modules |
|
Optional Modules |
None |
