Energy Storage Laboratory

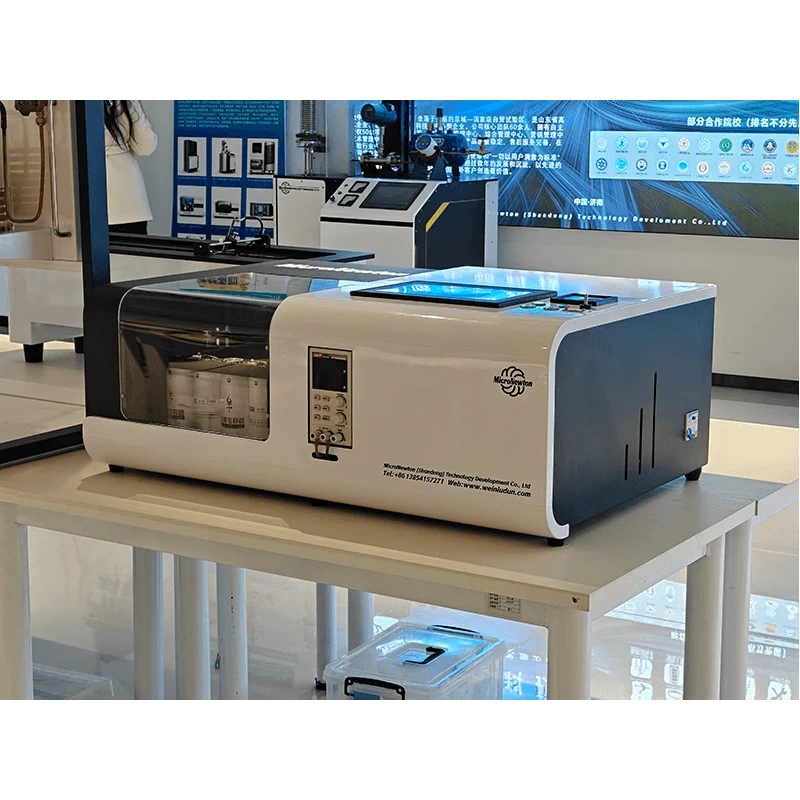

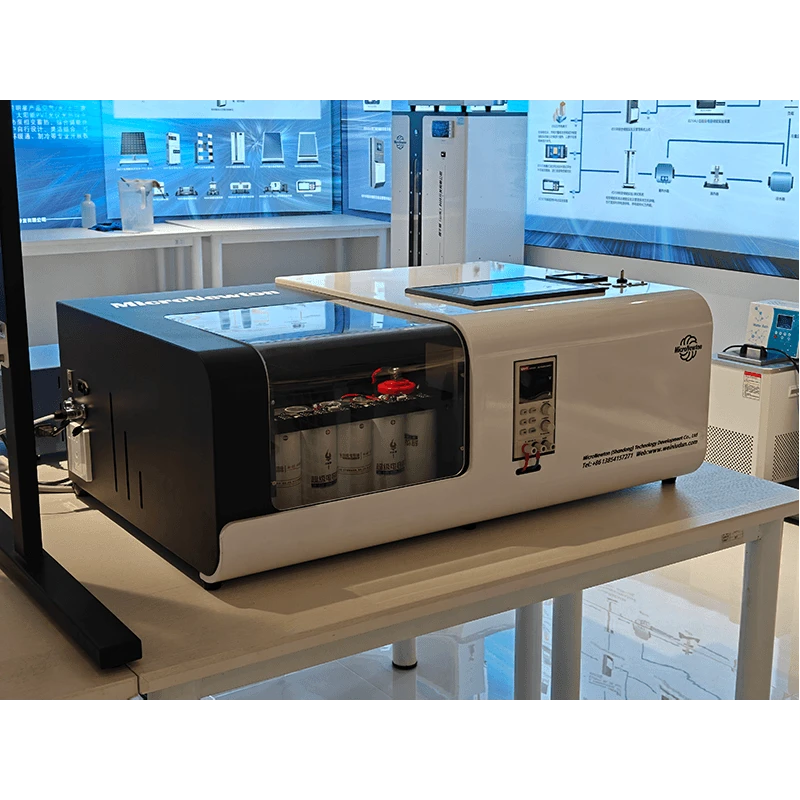

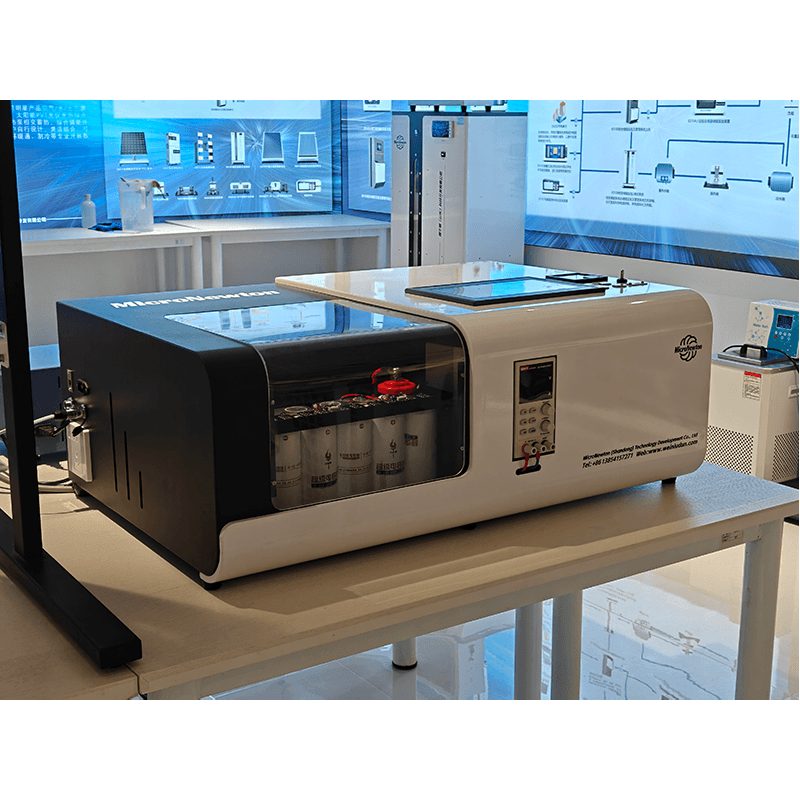

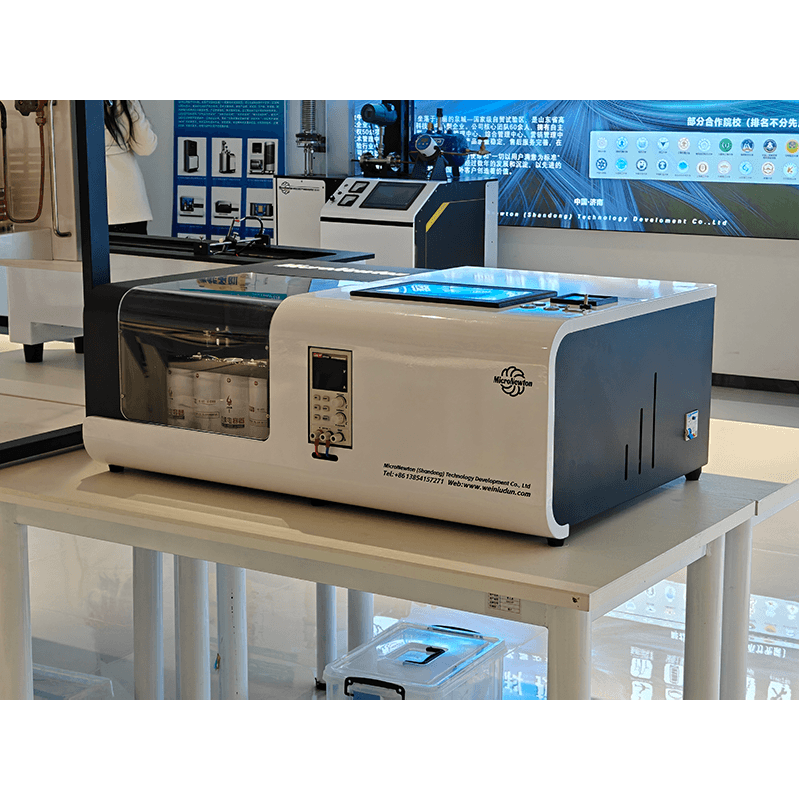

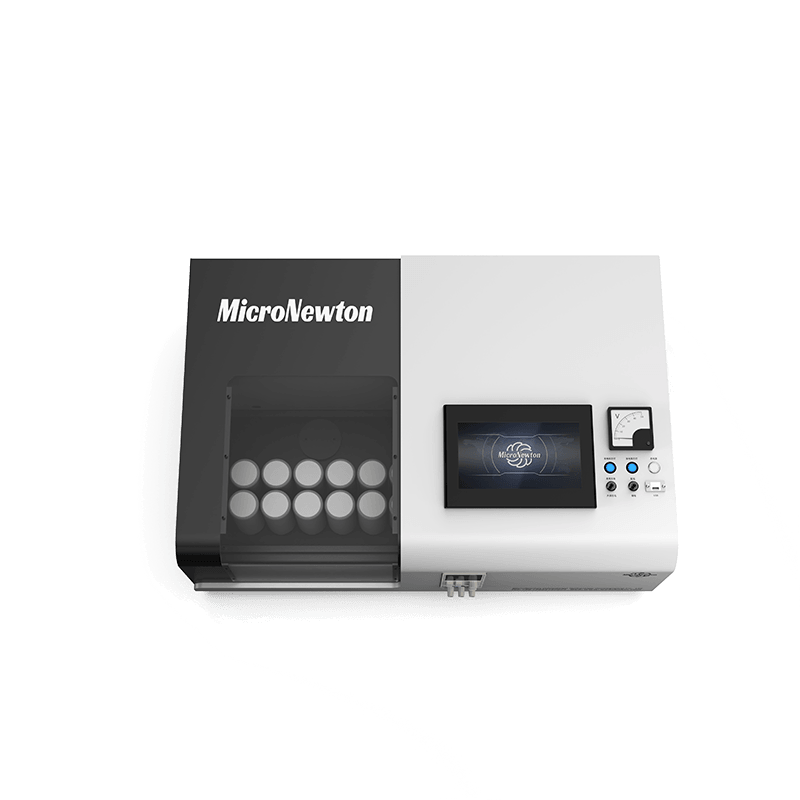

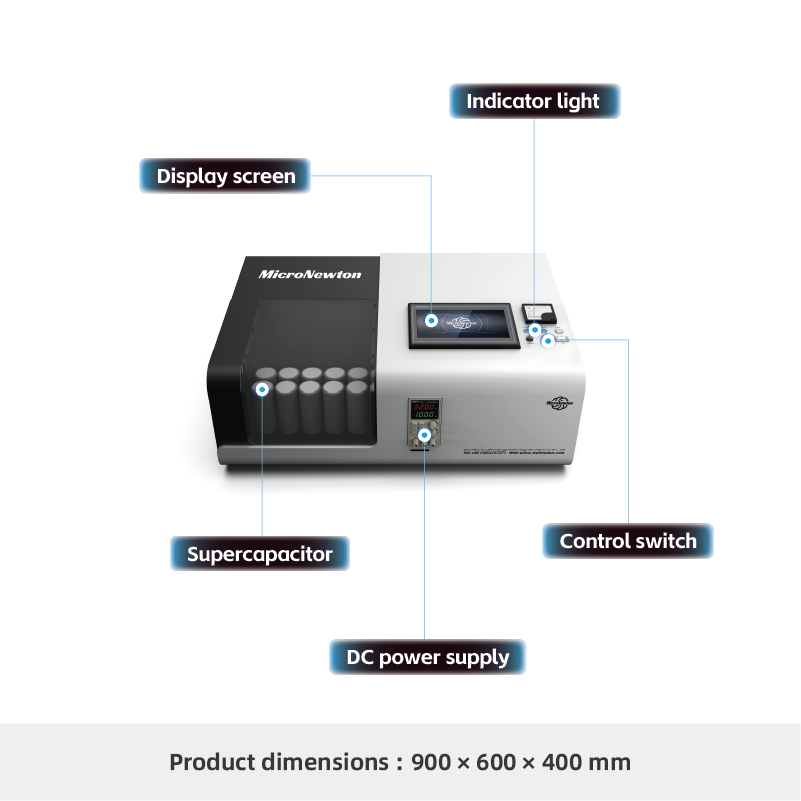

This product consists of 12 series-connected supercapacitors and a corresponding charge/discharge module, including a data acquisition unit, display unit, DC conversion unit, and inverter. It enables real-time acquisition and display of parameters such as voltage, current, temperature, capacity, and charge/discharge energy.

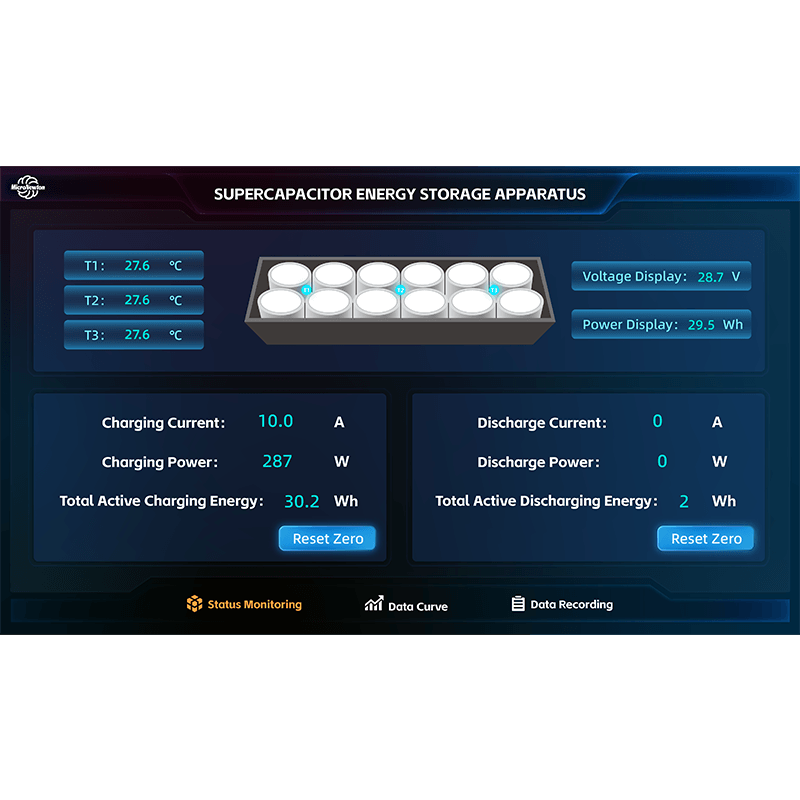

This device is designed to demonstrate the charging and discharging process of supercapacitors, capable of delivering both DC and AC power. It enables real-time monitoring of parameters such as voltage, current, capacitance, cumulative energy, and temperature during the charging and discharging cycles, while plotting their time-dependent curves.
Share:
Added to cart successfully
Experimental Function
1.The charge-discharge efficiency of supercapacitors can be investigated.
2.Power density of testable supercapacitors.
3.The energy density of the testable supercapacitor.
4.The natural discharge rate of supercapacitors during prolonged idling can be measured.
5.Supercapacitors can be integrated with other energy storage systems to investigate their performance and optimize control strategies in hybrid energy storage systems.
6.The output characteristic curve of the supercapacitor can be studied.
Product Attributes
|
Product Model |
ES104 |
Product Name |
Small-scale supercapacitor energy storage experimental device |
|
Main Materials |
Carbon steel, stainless steel |
Dimensions |
930×630×350mm |
|
Product Weight |
50kg |
Operating Environment |
At room temperature, with relative humidity ≤85% |
|
Input Power Supply |
Single-phase three-wire，220V±5%，50Hz/60Hz 110V±5%，50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
