Energy Storage Laboratory

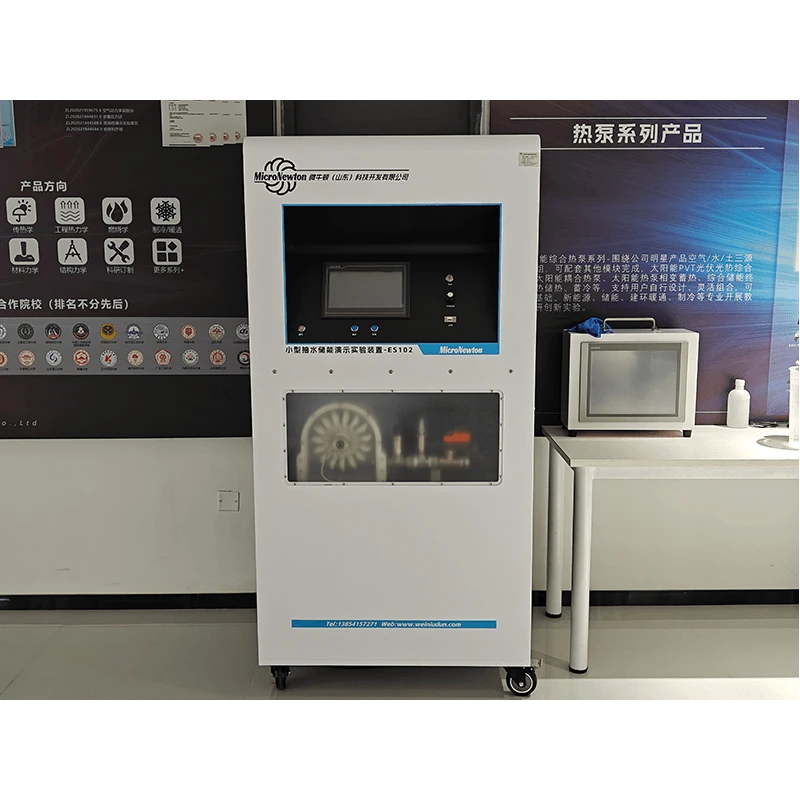

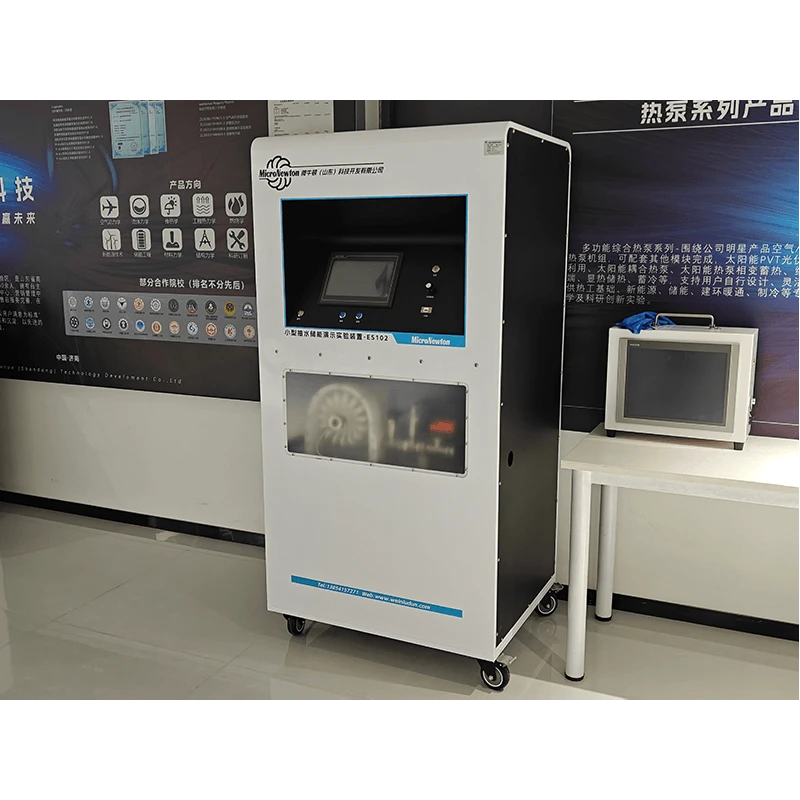

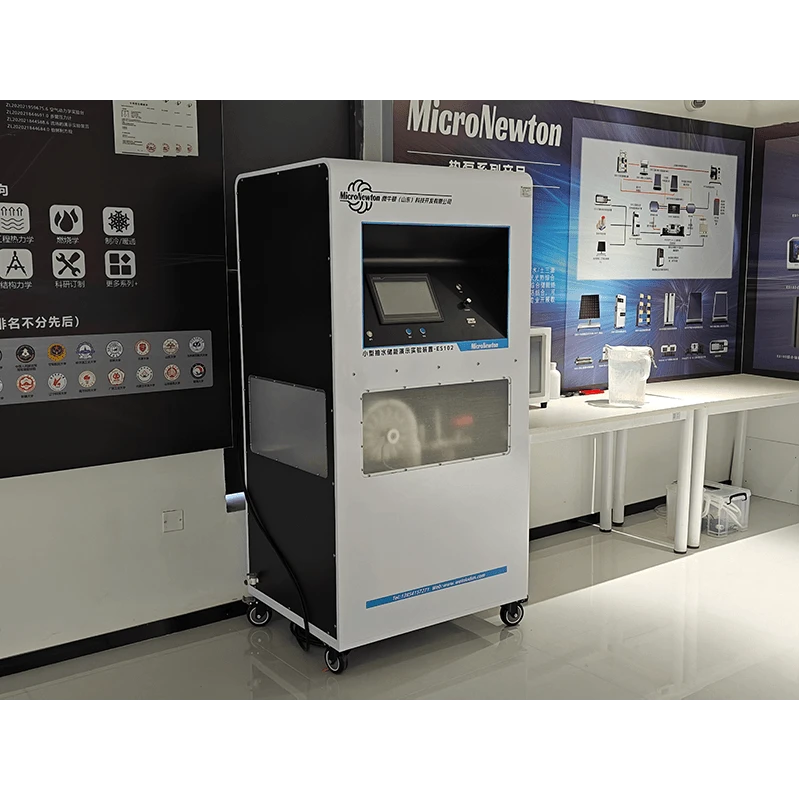

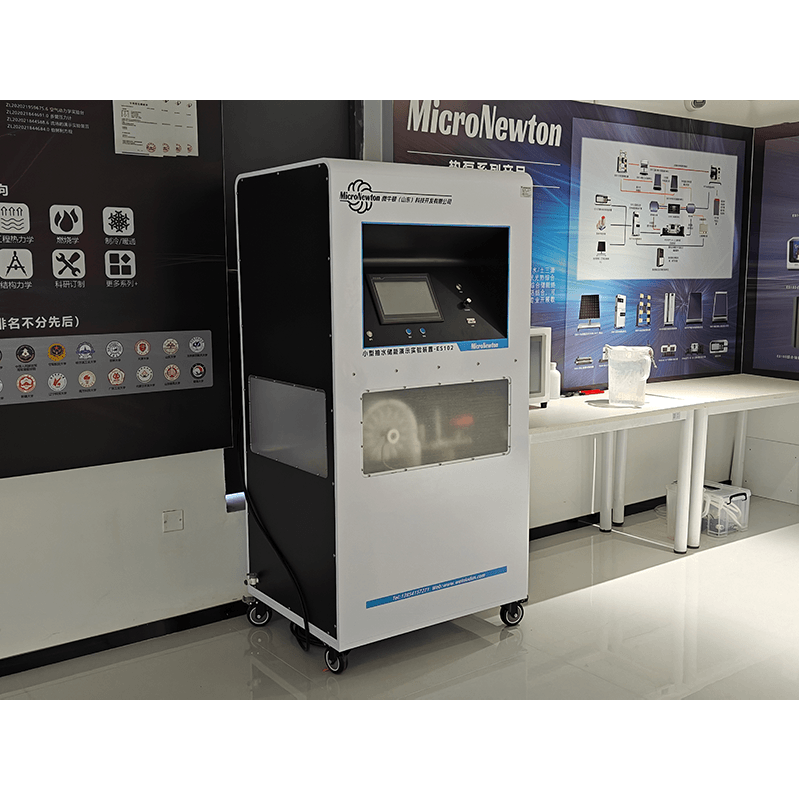

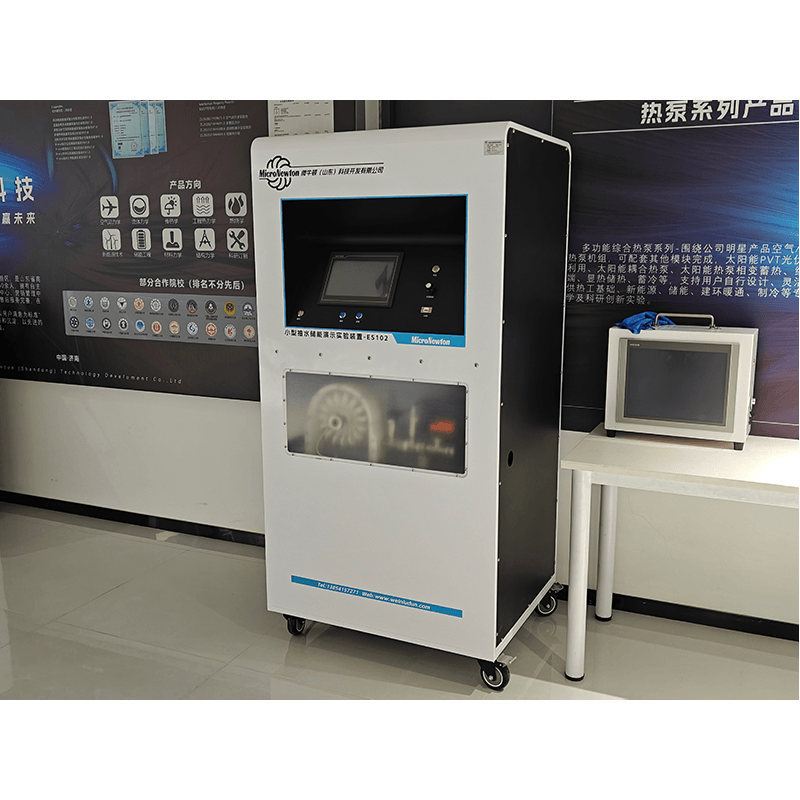

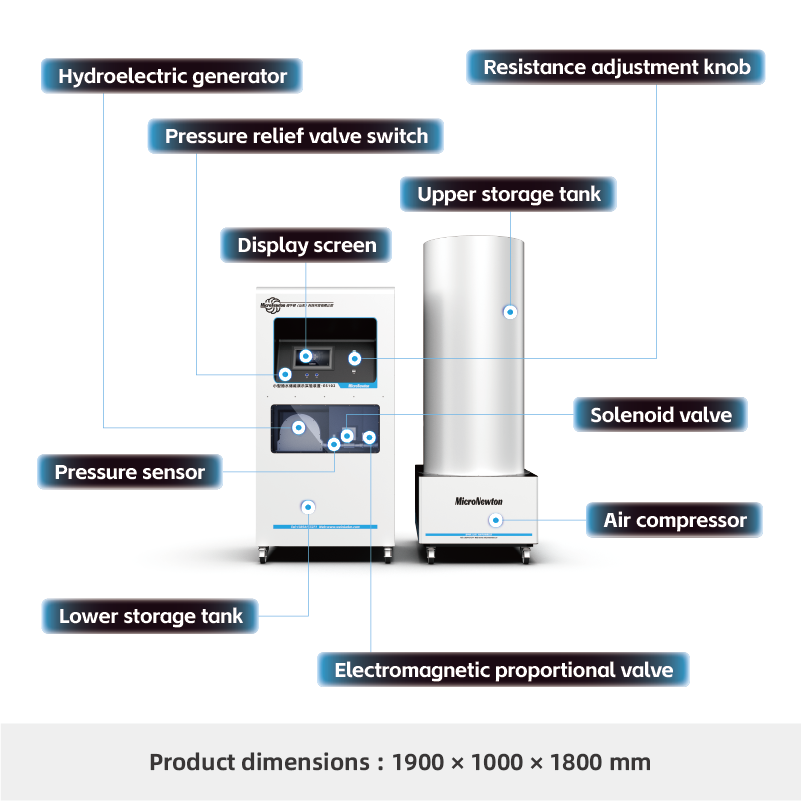

This product consists of a compressor, water pump, storage tank, and turbine generator set. The pressure potential energy provided by the pressurizing pump simulates the potential energy generated by the height difference of the liquid level, addressing the limitation of indoor experimental instruments that cannot achieve high water levels; thereby enabling the storage of sufficient potential energy in indoor environments.

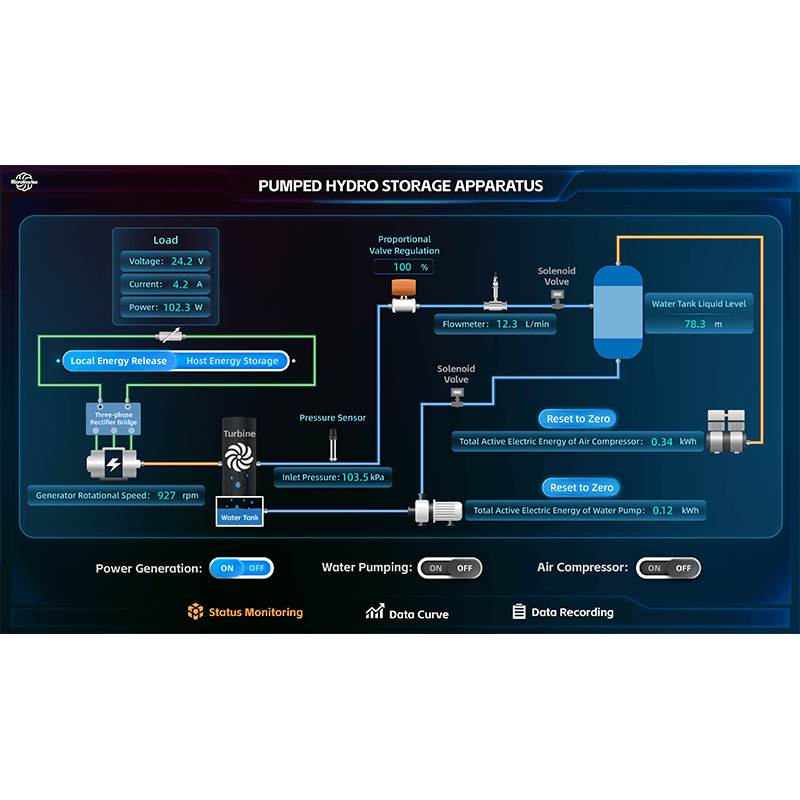

This device is a miniaturized experimental instrument developed based on large-scale pumped-storage power stations, designed for experimental teaching and research purposes. It simulates the pumped-storage power generation process, collects relevant operational parameters, and performs energy storage efficiency calculations.
Share:
Added to cart successfully
Experimental Function
1.Can demonstrate the structural layout and operating principles of a pumped-storage power station.
2.Experimental studies such as pumped-storage efficiency analysis and peak-valley operation can be conducted.
3.It can simulate the electricity storage during off-peak hours and the power generation process during peak consumption periods.
4.Can simulate the frequency regulation process of pumped-storage power stations.
5.The relationship between power generation output and the water level difference can be investigated.
6.The relationship between power generation and the water level difference can be investigated.
7.The relationship between the turbine rotational speed and the water level difference can be investigated.
8.The relationship between power generation output and turbine rotational speed can be investigated.
9.It can plot power-time curves and calculate power generation over a specified time period.
10.Energy conversion efficiency analysis is feasible.
Product Attributes
|
Product Model |
ES102 |
Product Name |

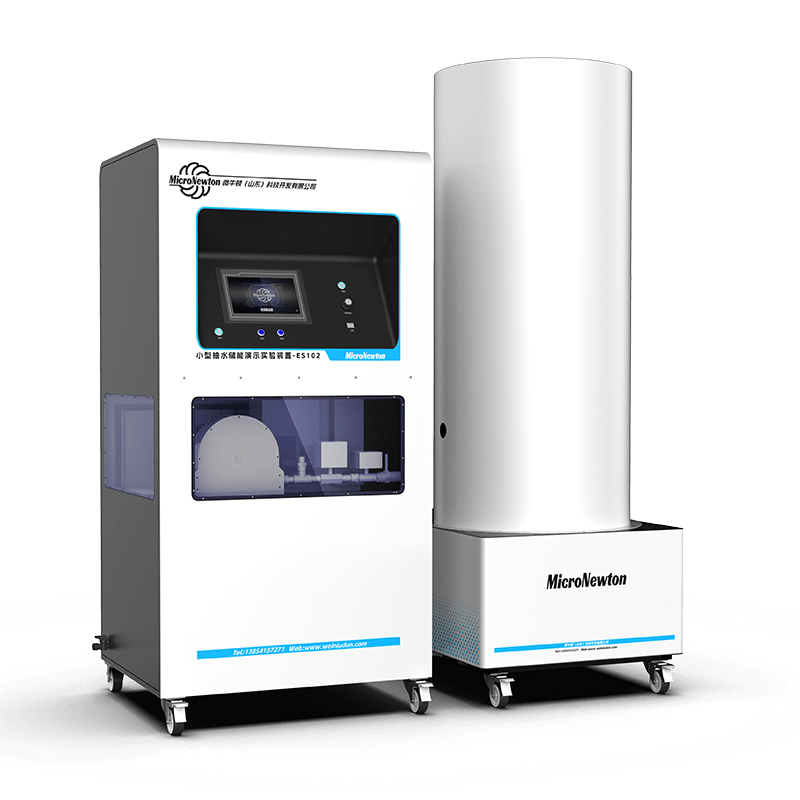

Small-scale pumped-storage energy demonstration experimental facility |
|
Main Materials |
Carbon steel, stainless steel |
Dimensions |
Cylindrical water tank dimensions: 995×730×1957 mm; Square water tank dimensions: 750×650×550 mm; Main body dimensions: 855×700×1745 mm |
|
Product Weight |
Approximately 500 kg |
Operating Environment |
At room temperature, with relative humidity ≤85% |
|
Input Power Supply |
Three-phase five-wire, 380V ±5%,50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
