Energy Storage Laboratory

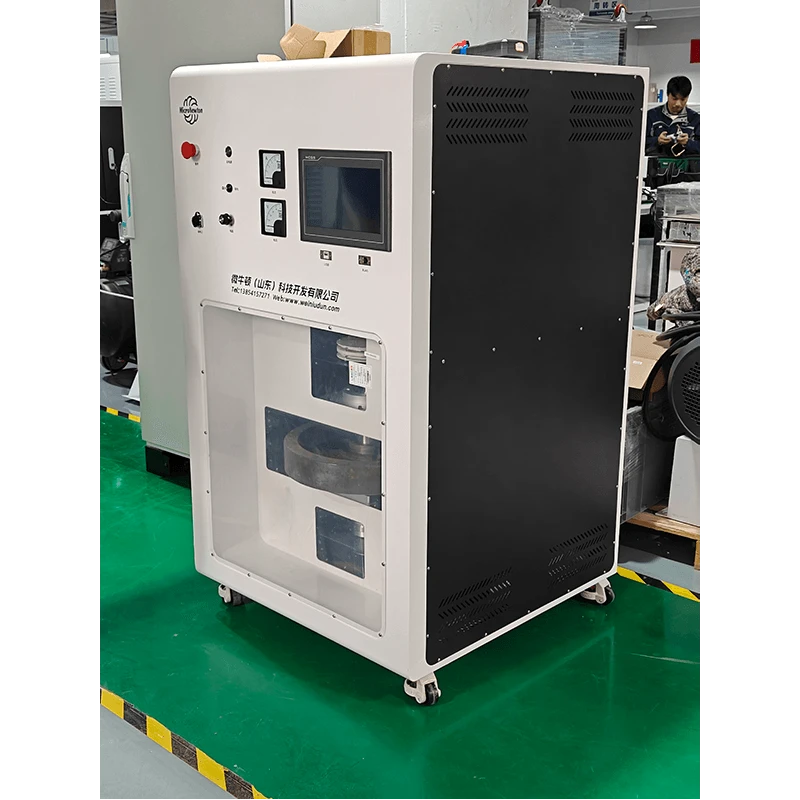

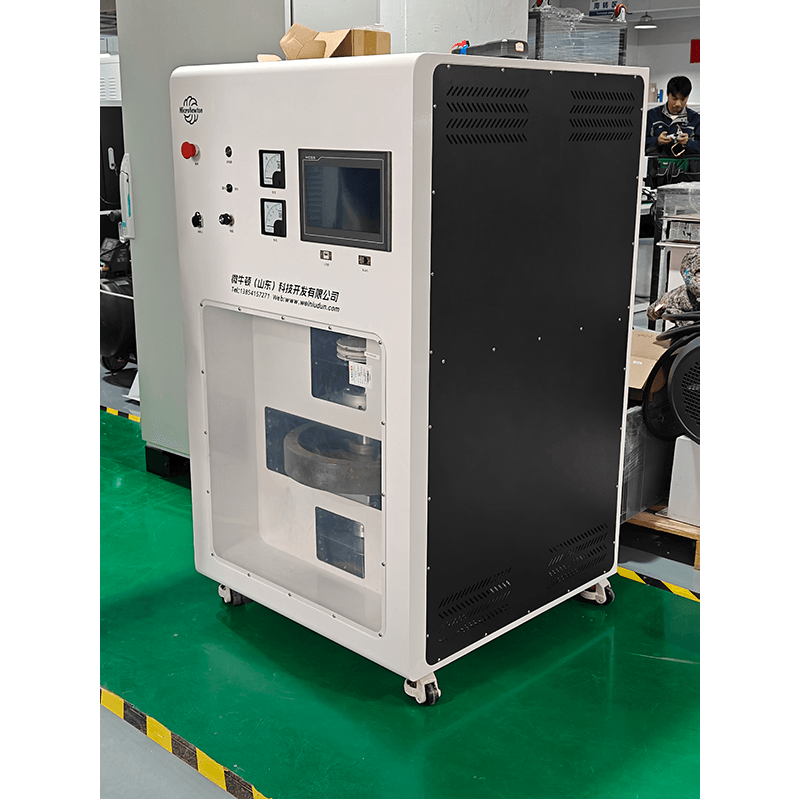

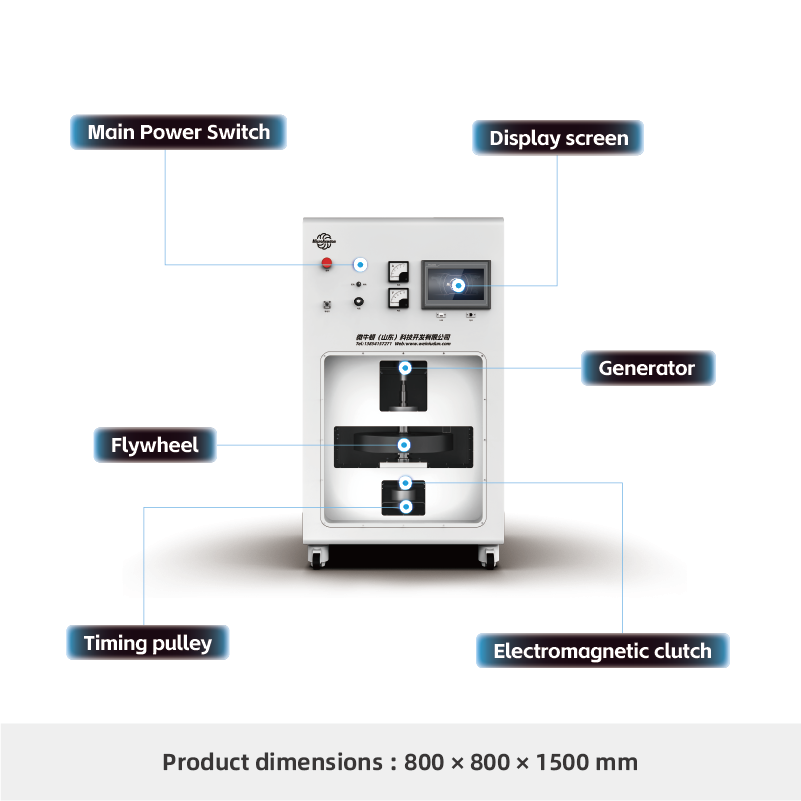

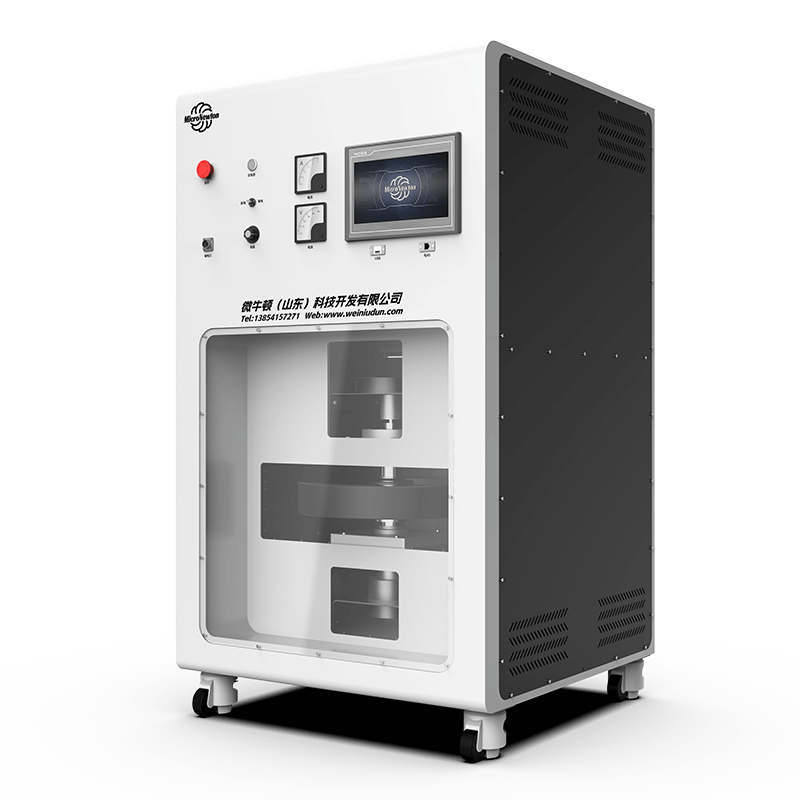

This product consists of a flywheel body, electromagnetic clutch, servo motor, generator, and electric energy measurement module. Its core mechanism converts electrical energy into kinetic energy for storage through the high-speed rotation of the flywheel. By analyzing the relationship between rotational speed and energy storage capacity based on the flywheel's diameter and weight parameters, the system evaluates its efficiency under various operating conditions by monitoring electrical energy consumption and generation during charging and discharging phases. Additionally, precision devices enable real-time monitoring of critical parameters such as rotational speed, current, voltage, and energy consumption, with experimental data being recorded continuously.
Share:
Added to cart successfully
Experimental Function
1.By integrating parameters such as flywheel diameter and weight, the relationship between rotational speed and energy storage capacity can be analyzed.
2.By monitoring the electrical energy consumed or generated during charging and discharging phases, the system efficiency under various operating conditions can be evaluated. Meanwhile, precision instruments enable real-time accurate monitoring of key parameters such as rotational speed, current, voltage, and energy consumption, with experimental data being recorded continuously.
3.An experiment demonstrating the relationship between flywheel energy storage capacity and rotational speed/inertia
4.Applicable for charge-discharge characteristic experiments of flywheel energy storage systems
Product Attributes
|
Product Model |
ES103 |
Product Name |
Small-scale flywheelenergy storageexperimental system |
|
Main Materials |
carbon steel |
Dimensions |
800×820×1400mm |
|
Product Weight |
68kg |
Operating Environment |
At room temperature, with relative humidity ≤85% |
|
Input Power Supply |
Single-phase three-wire,220V±5%，50Hz/60Hz；110V±5%，50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
Case Studies
Integrated Thermal Fluids and Energy Laboratory at Zhejiang University of Technology
Flight Demonstration Wind Tunnel at Shandong University
Multi Energy Complementary Experimental Platform at Hebei University
Statically Determinate Beam Section Internal Force Testing Apparatus Delivered to Jining Vocational and Technical College
Self Developed Compression Bar Stability and Stress Testing Apparatus Delivered to Shandong Polytechnic University
