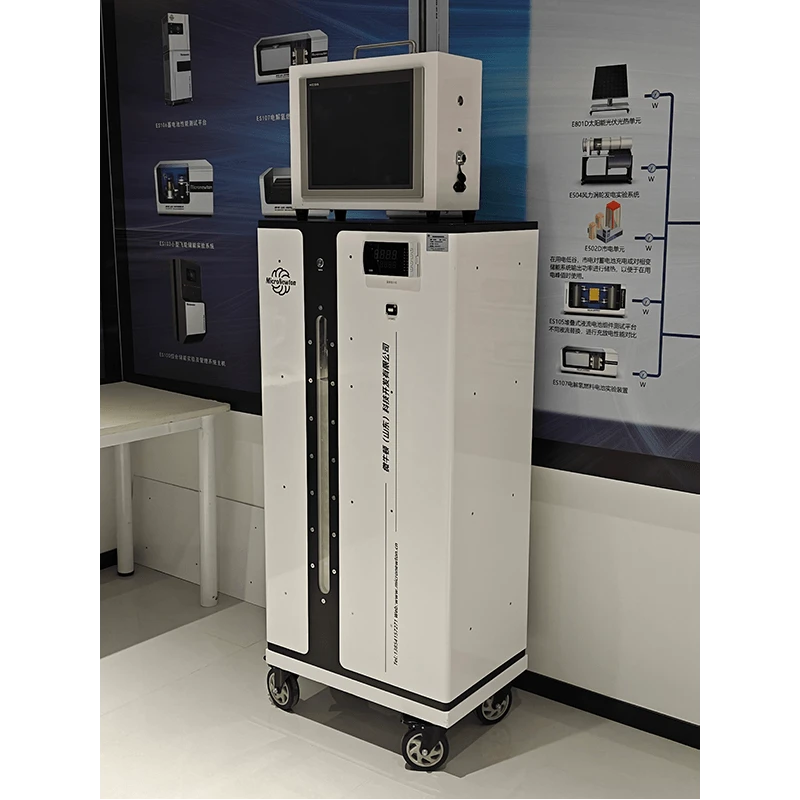

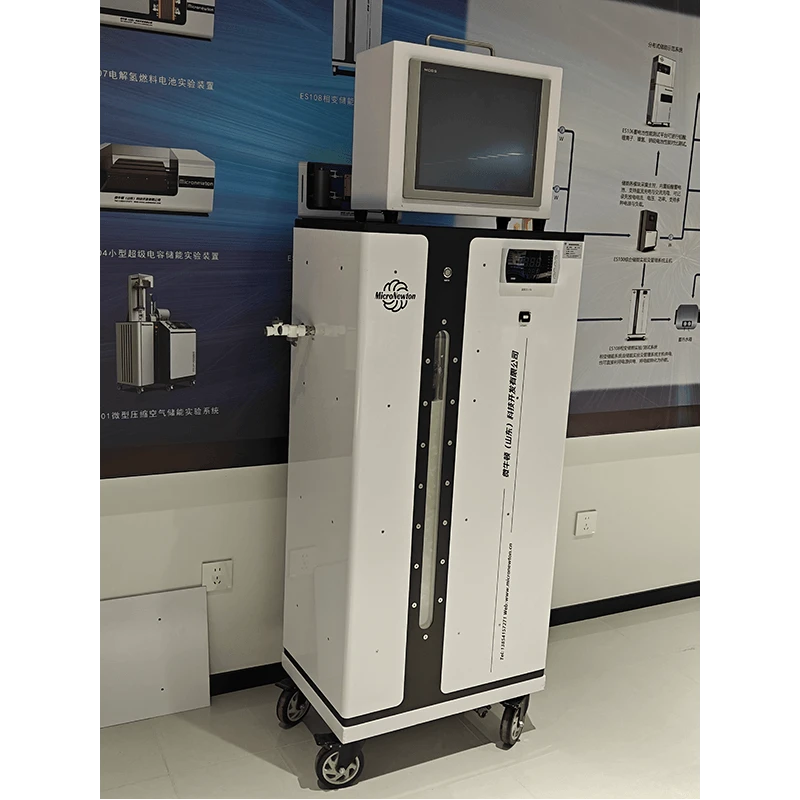

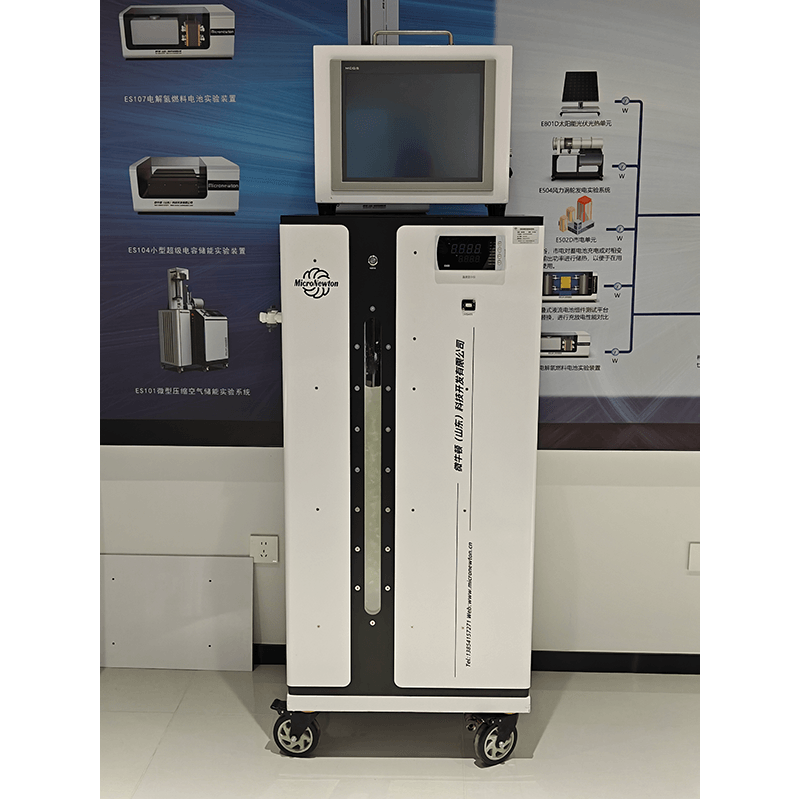

Energy Storage Laboratory

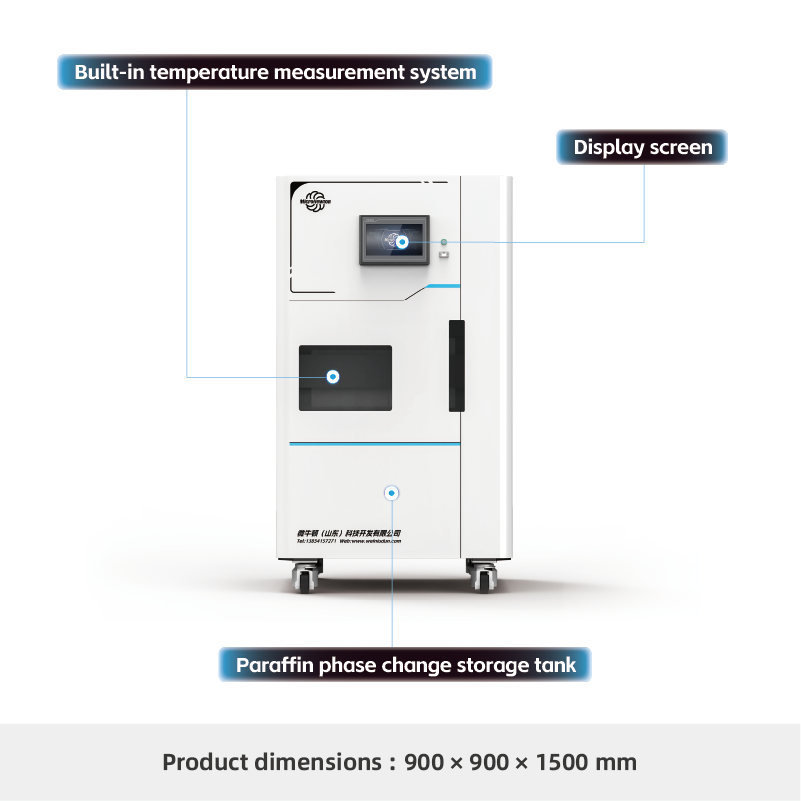

This product primarily consists of a regenerative heat storage unit, composite structural support units, a heating unit, a heat exchange unit, a data acquisition unit, and a control unit.
This product is a comprehensive teaching and research device integrating thermal energy storage, dynamic monitoring, and performance verification. Its core Experimental Function utilizes high-precision multi-point temperature sensors to collect real-time temperature field data during the endothermic melting and exothermic solidification processes of phase-change materials, enabling experiments such as studying the heat storage and release characteristics of the energy storage unit, analyzing the thermophysical properties of phase-change materials, verifying heat transfer enhancement technologies, testing heat pipe performance, and optimizing energy management strategies.
Share:
Added to cart successfully
Experimental Function
1.It can be used in conjunction with solar thermal units or heat pump systems to directly store thermal energy from hot water; alternatively, it can convert excess electricity from wind or solar power or off-peak electricity into thermal energy for storage through electric heating.
2.Supports replacement with different materials and composite structures
3.Thermal and Physical Property Experiments Applicable to Phase-Change Materials
4.Can be used for testing the thermal storage temperature distribution characteristics of phase-change materials
5.Can be used for testing the heat storage and extraction characteristics of phase-change materials
6.Comprehensive experiments can be conducted by integrating other modules such as solar energy and heat pumps.
Product Attributes
|
Product Model |
ES108 |
Product Name |
Phase Change Energy Storage Experimental System |
|
Main Materials |
Carbon steel, stainless steel |
Dimensions |
900×900×1600mm |
|
Product Weight |
78kg |
Operating Environment |
At room temperature, with relative humidity ≤85% |
|
Input Power Supply |
Single-phase three-wire，220V±5%，50Hz/60Hz 110V±5%，50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
