Compressible Flow

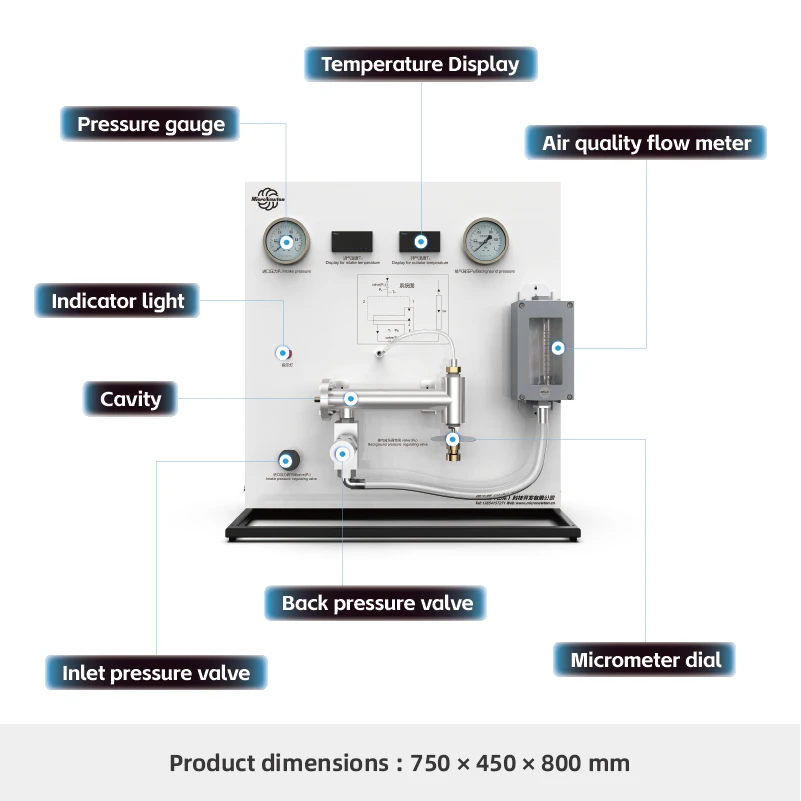

This product is designed based on the principles of compressible flow and Laval nozzle characteristics in Aerodynamics. It consists of an aerodynamic flow channel, a force balance arm, and a thrust measurement module.
The system is used to study jet velocity performance and thrust efficiency of a Laval nozzle under different operating conditions. It enables analysis of nozzle flow behavior, including compressible effects and thrust generation characteristics.
Share:
Added to cart successfully
Experimental Functions
1.Demonstrate nozzle choking (critical flow) phenomenon.
2.Study the influence of inlet pressure and ambient back pressure on jet velocity.
3.Compare theoretical and actual jet velocities.
4.Investigate jet velocity variation under different inlet pressures and back pressures.
5.Study nozzle efficiency.
6.Analyze nozzle reaction force and the relationship between inlet pressure, back pressure, and unit thrust.
7.Support extended functions, including customizable nozzle designs.
Product Attributes
|
Product Model |
F301 |
Product Name |

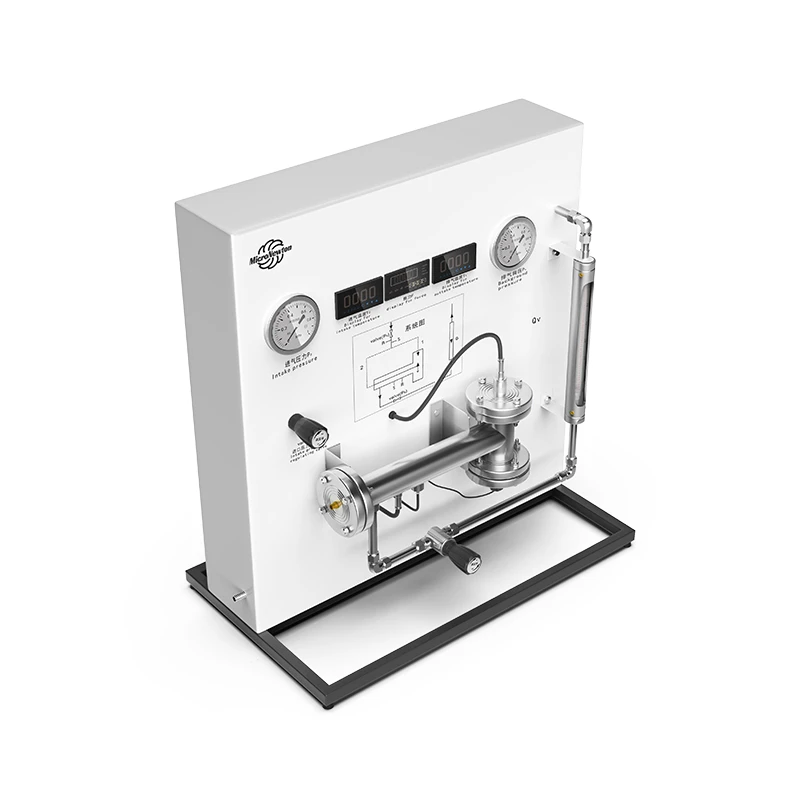

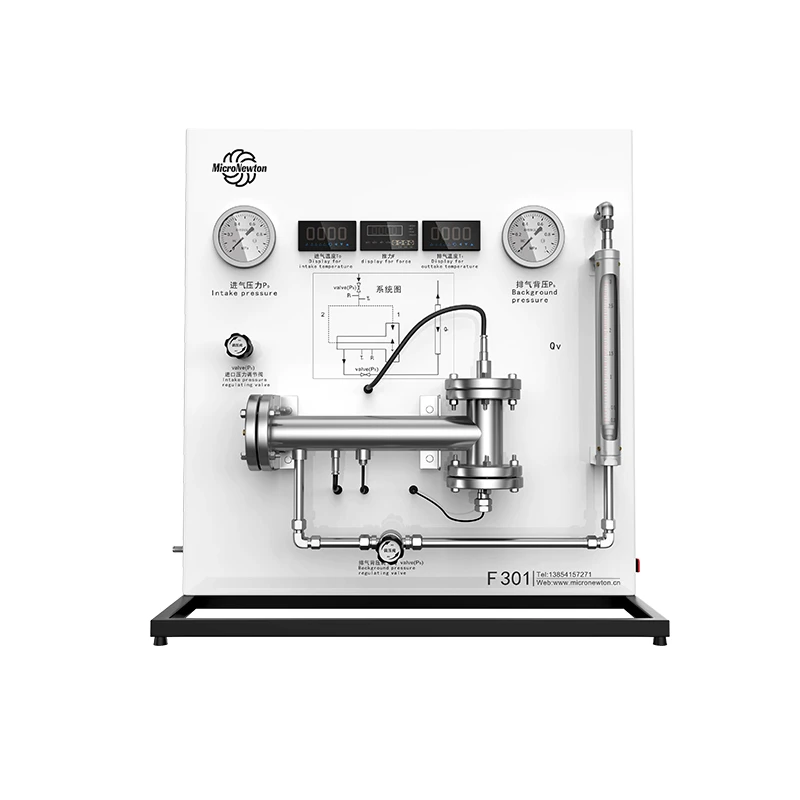

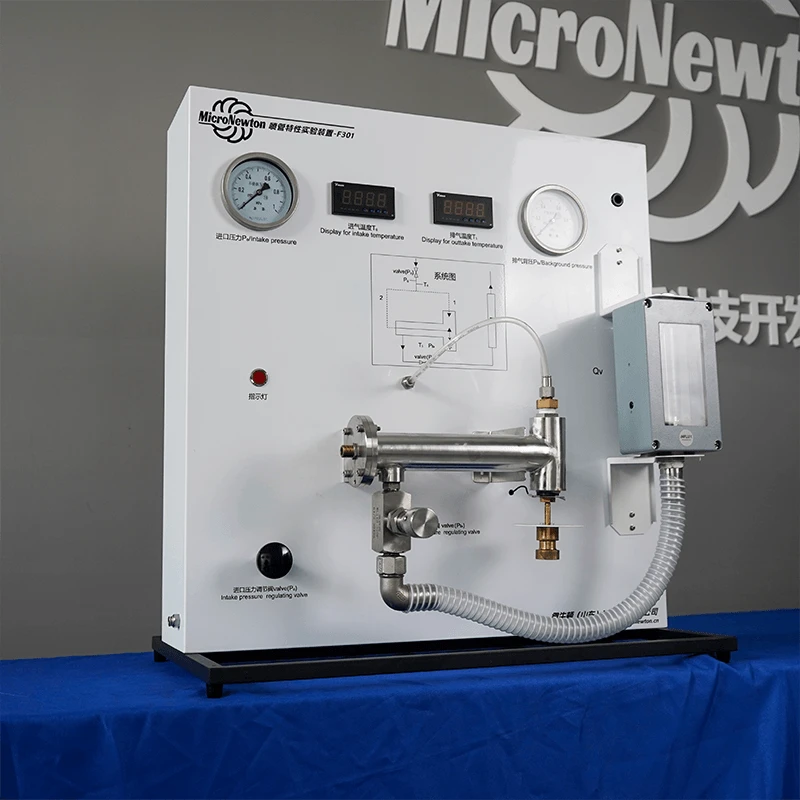

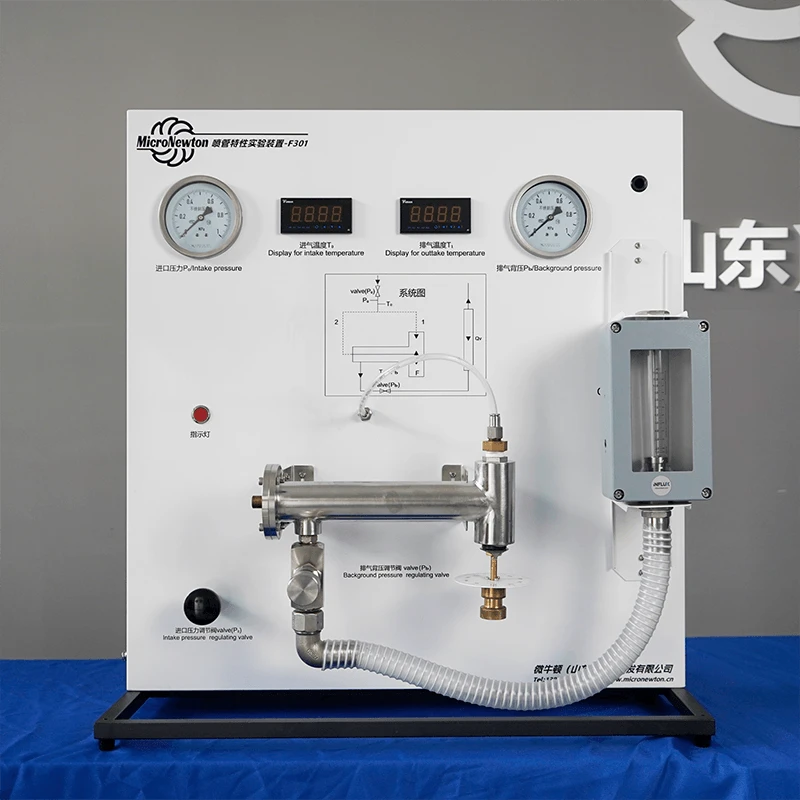

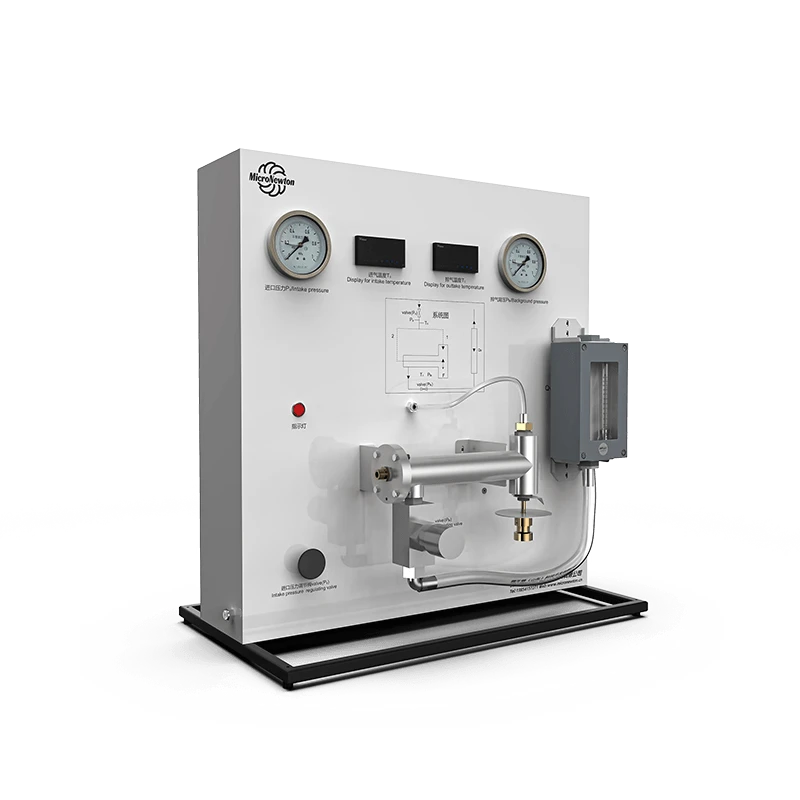

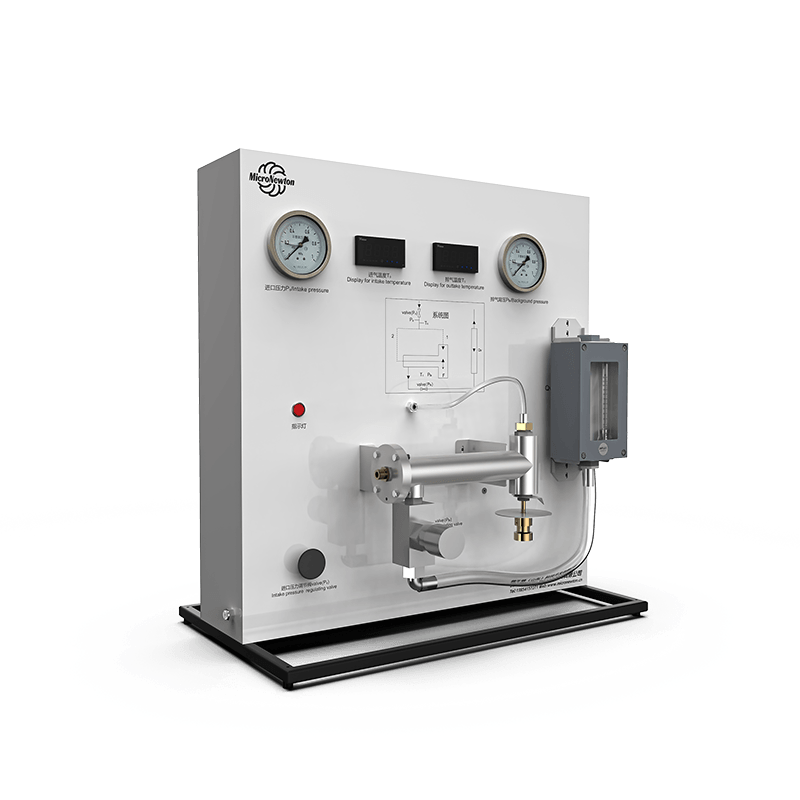

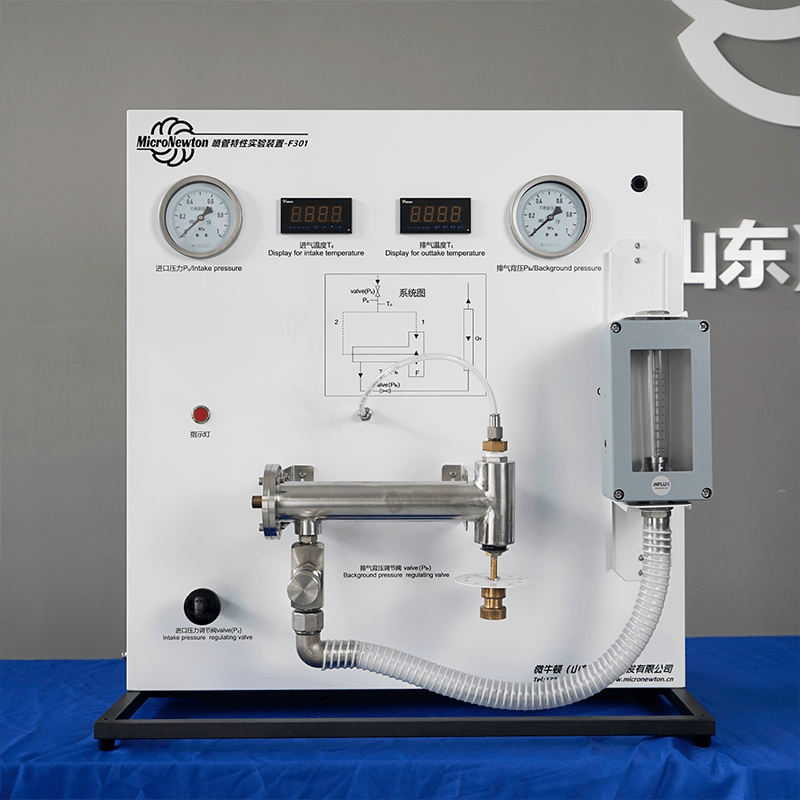

Nozzle Performance Experimental Apparatus |
|
Main Materials |
Galvanized steel sheet, 304 stainless steel, H59 brass |
Dimensions |
750 × 450 × 820 mm |
|
Product Weight |
27.2 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz |
||
|
Required Modules |
Interchangeable nozzles, weights |
Optional Modules |
None |
