Compressible Flow
This product is developed based on the flow resistance theories in Fluid Mechanics and Aerodynamics. It is designed to study pressure losses in compressible fluid flow under different pipe configurations and Reynolds numbers.

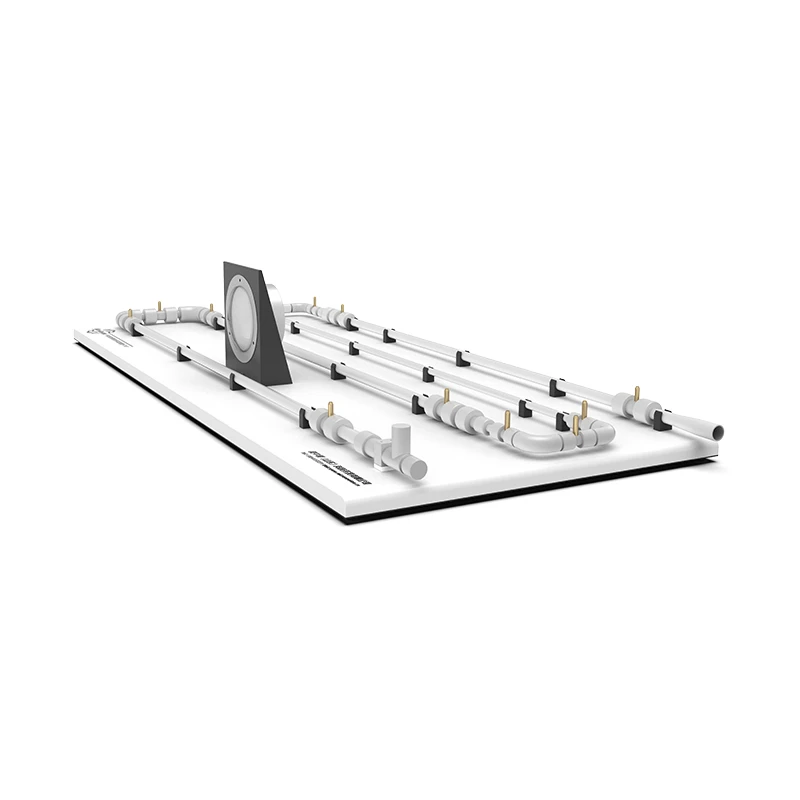

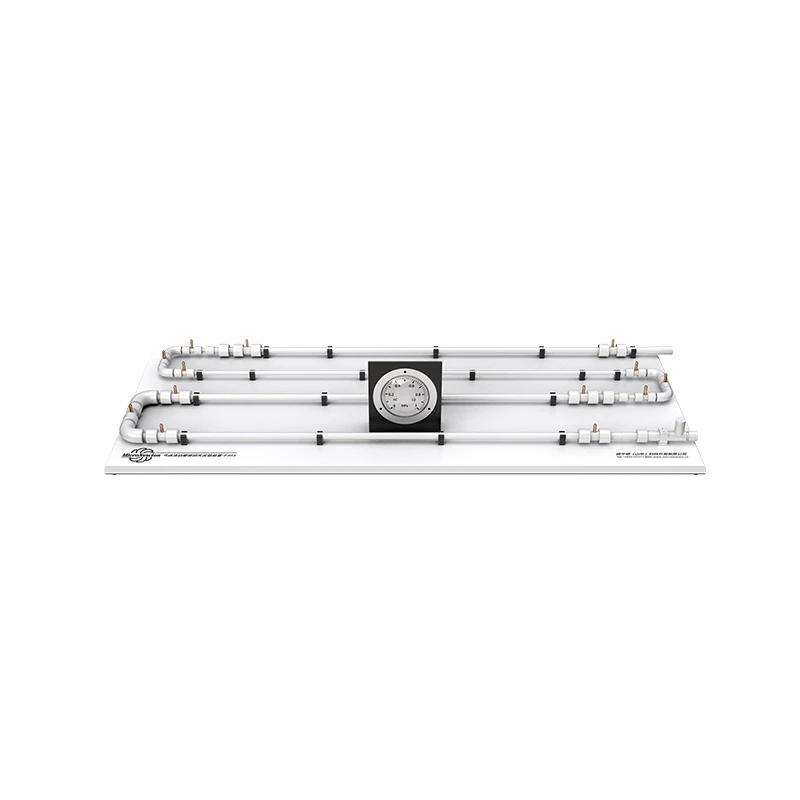

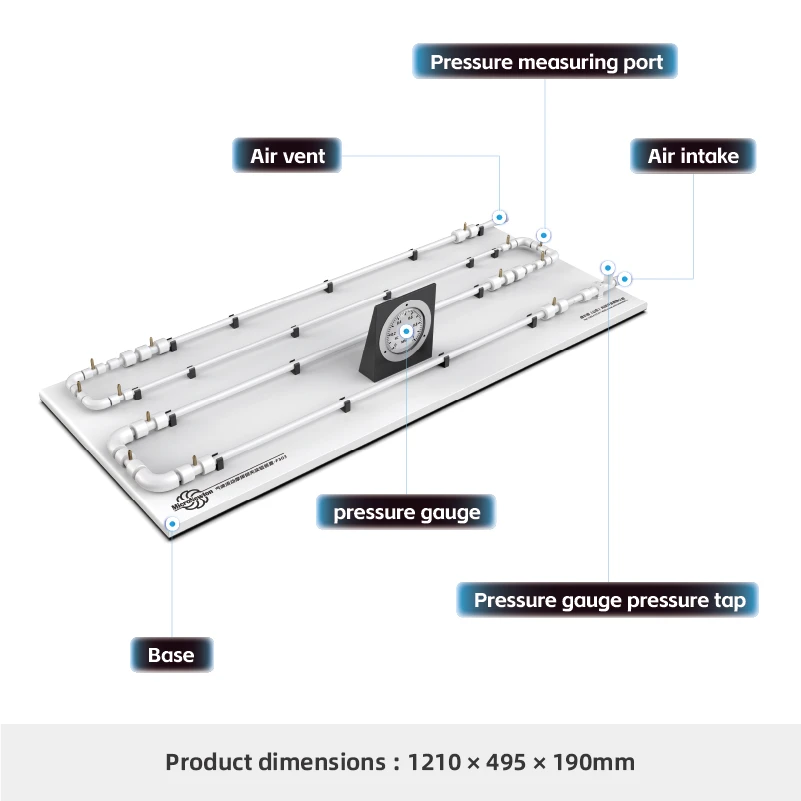

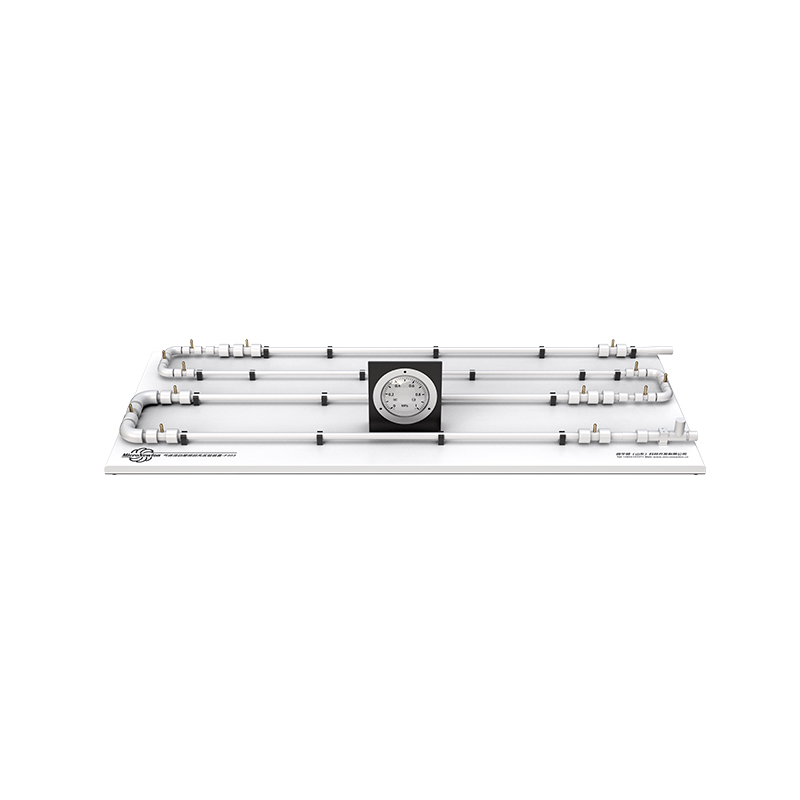

The apparatus consists of a continuous flow channel assembled from pipes with various diameters and surface roughness levels. It is equipped with a flowmeter, differential pressure tapping points, and pressure measuring instruments, enabling measurement of both distributed (frictional) and local pressure losses.
The system allows comprehensive investigation of friction factors, flow resistance characteristics, and pressure loss behavior in gas flow systems.
Share:
Added to cart successfully
Experimental Functions
1.Study basic pipe flow friction characteristics.
2.Investigate pipe friction factors under different Reynolds numbers.
3.Analyze friction factors in compressible flow conditions.
4.Study pressure loss and recovery when flow direction changes abruptly.
5Investigate pressure loss when airflow passes through pipe bends.
Product Attributes
|
Product Model |
F303 |
Product Name |
Gas Flow Friction Loss Experimental Apparatus |
|
Main Materials |
Galvanized steel sheet, PVC, brass |
Dimensions |
1210 × 495 × 210 mm |
|
Product Weight |
15kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Air compressor, small air supply station |
Optional Modules |
None |
