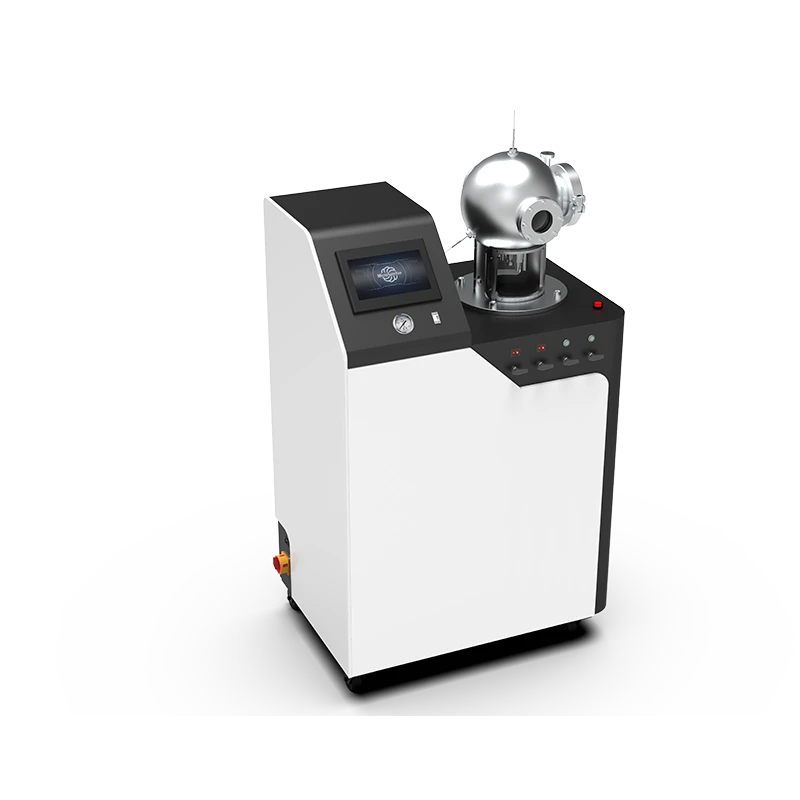

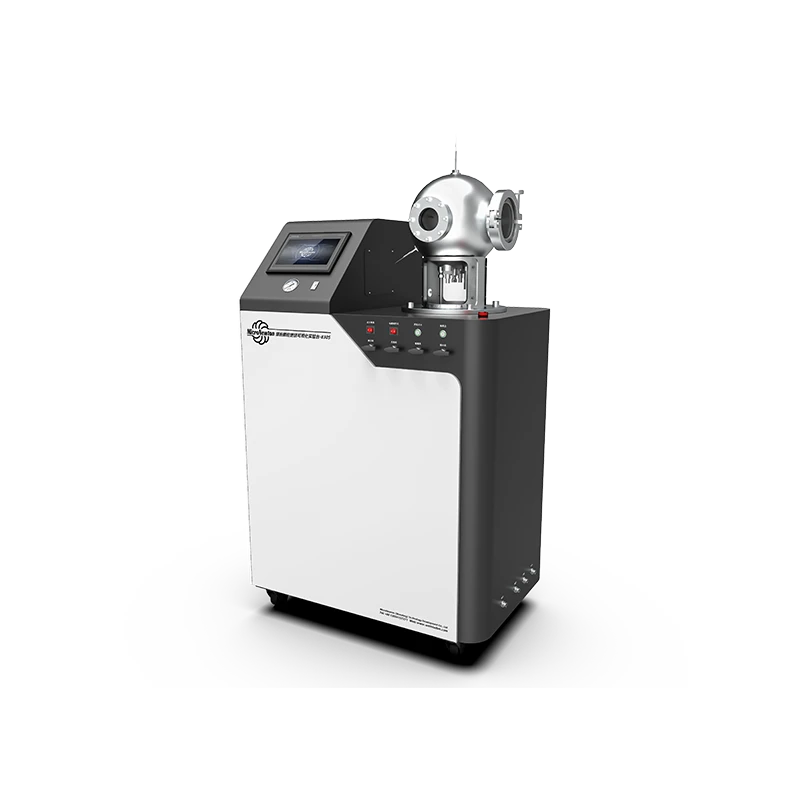

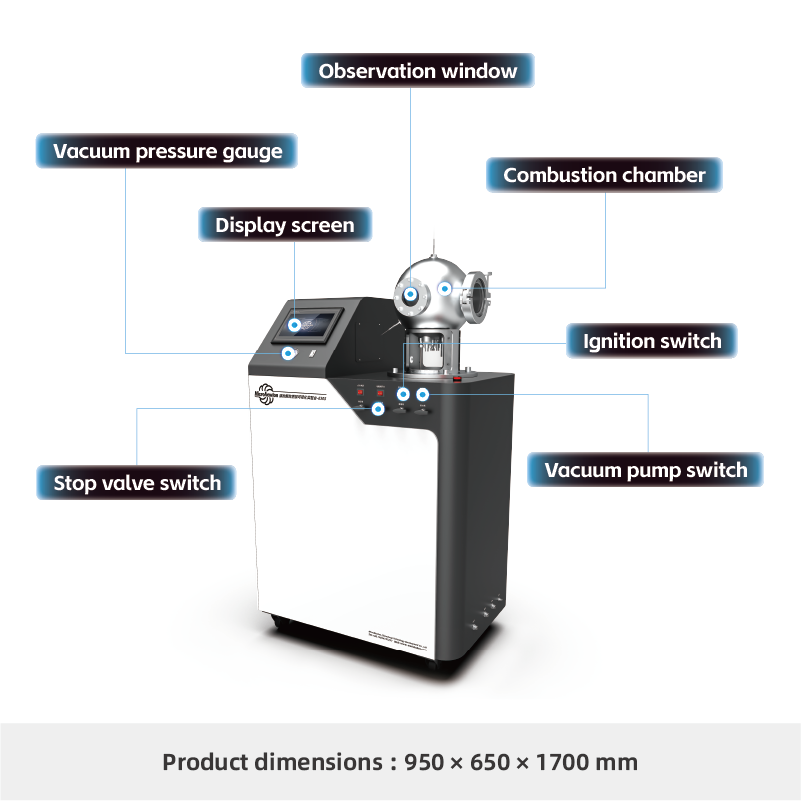

The coal powder particle combustion visualization experimental device is an experimental equipment used for in-depth research on the characteristics of coal powder combustion and combustion optimization. It analyzes the combustion characteristics of different qualities and particle sizes of coal powder by heating coal powder or compressed coal powder to the combustion point in quantitative pure oxygen, analyzing the composition of the smoke generated during the combustion process, as well as the mass of coal powder and ash before and after combustion. The key technologies of coal powder burner include coal powder compaction, airflow transportation, automatic ignition, etc. The contact type automatic ignition system is one of the most important highlights of this equipment, which can quickly insert or remove coal powder in a relatively closed chamber without the need for additional circuit connection, ensuring the convenience of the experiment. The process of welding the entire body with 304 stainless steel ensures the safety, explosion resistance, airtightness, and high temperature resistance of the combustion equipment. A safety valve is installed at the bottom to ensure that the internal gas pressure does not exceed 1MPa. The equipment pipelines are made of high-temperature and corrosion-resistant materials to ensure long-term stable operation in harsh environments. The design is simple, easy to clean and maintain.
This device can accurately collect combustion temperature and internal pressure of the chamber through precision instrument measurement, and the experimental data is reliable.
Share:
Added to cart successfully
Experimental feature
1.Visualization research on coal powder particle combustion
2.Study on the changes in quality and products before and after combustion
Product Attributes
|
Product Model |
E305 |
Product Name |
Visualizationexperimentalplatformforcoalpowderparticlecombustion |
|
Main Materials |
Galvanized sheet, 304 stainless steel |
Dimensions |
950×650×1500mm |
|
Product Weight |
100kg |
Operating Environment |
Room temperature, relative humidity ≤ 85%, ventilation |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz 110V±5%，50Hz/60Hz |
||
|
Required Modules |
Spiral coal powder compactor |
Optional Modules |
None |
