Combustion Science

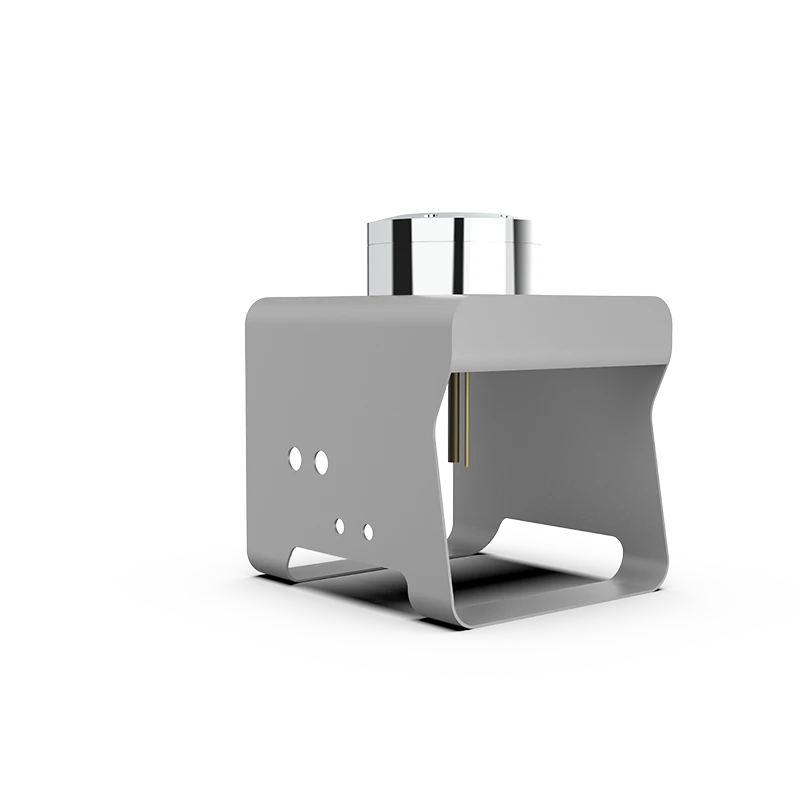

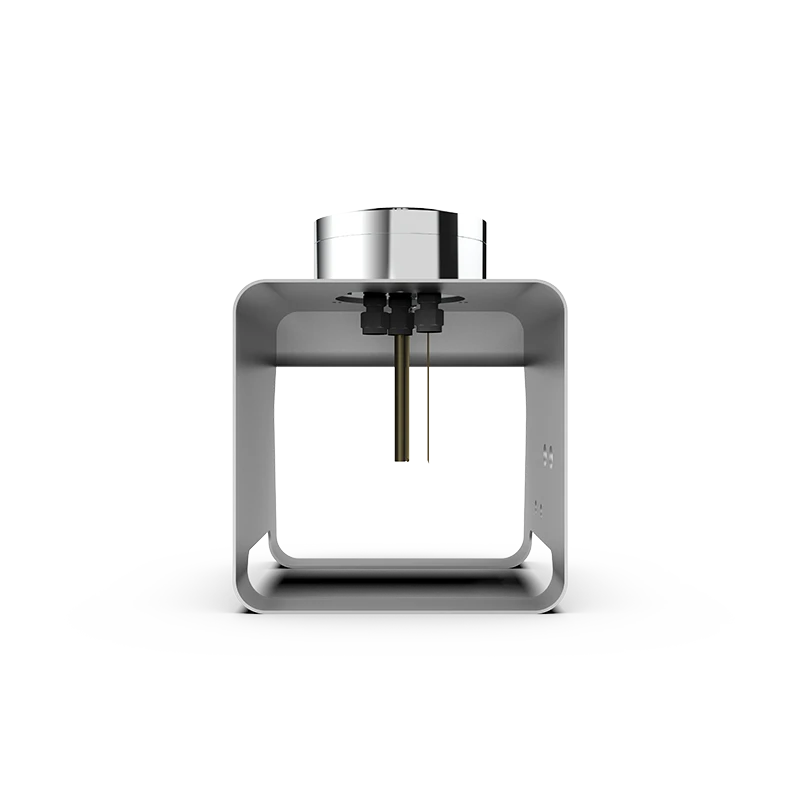

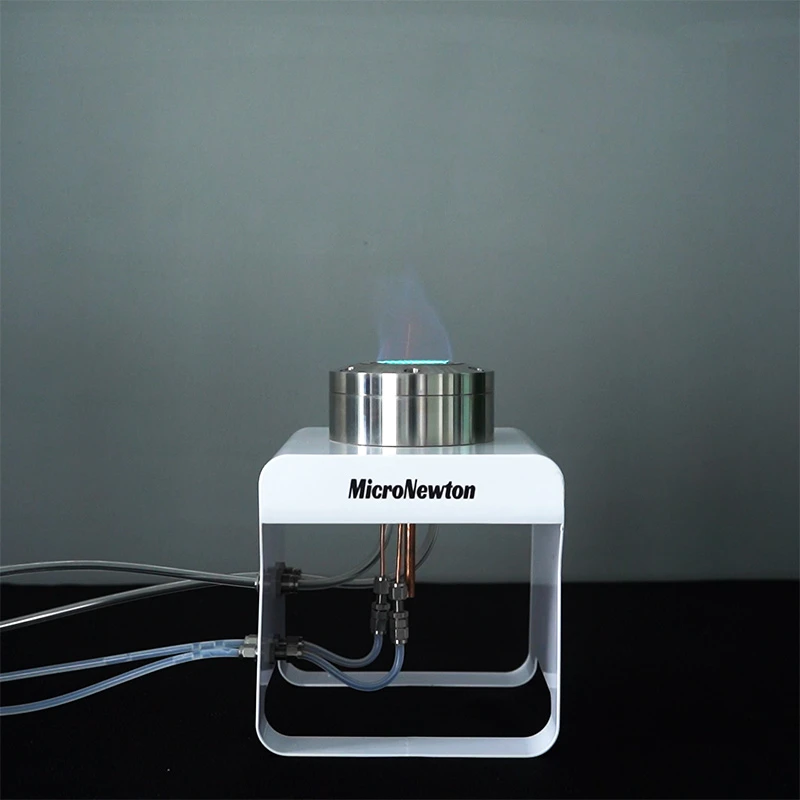

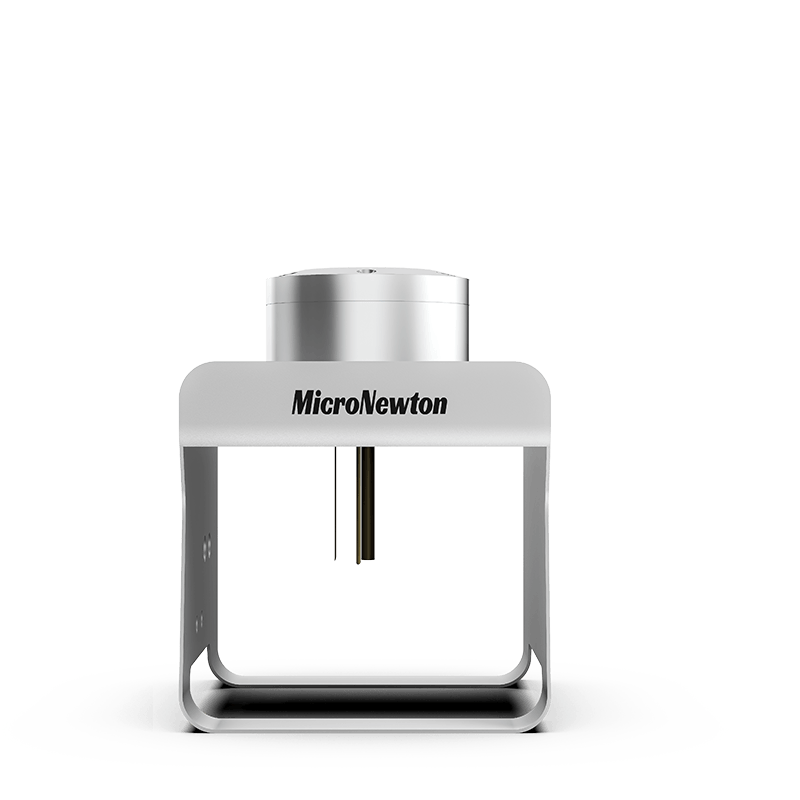

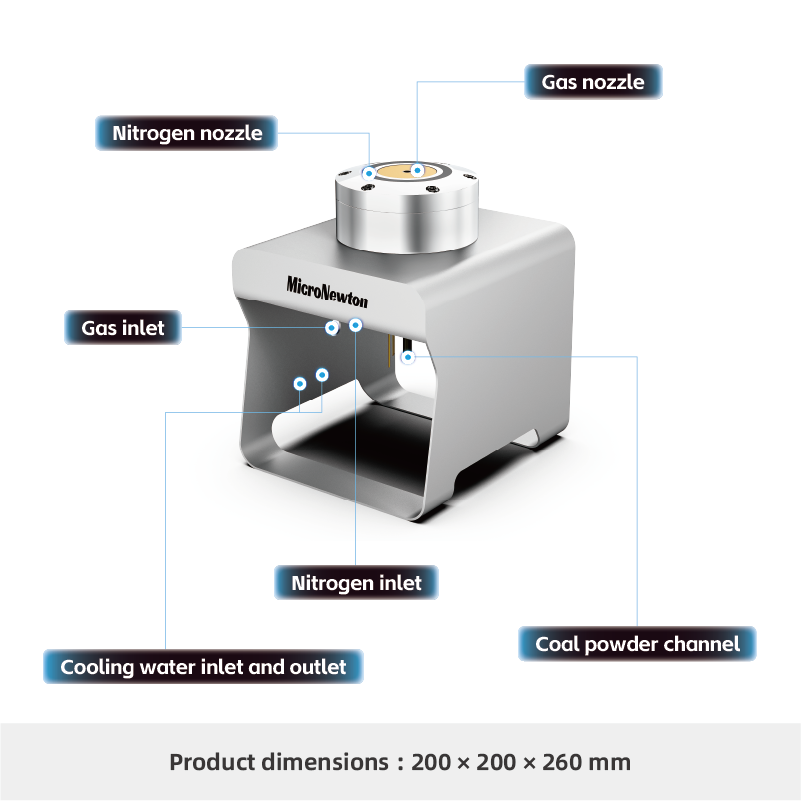

The core component of E303 flat flame burner is a brass sintered disk with fine micropores on the upper surface, which can ensure uniform injection of premixed fuel and air; The disc is covered with a stainless steel sintered ring with fine micropores, and nitrogen protective gas is evenly sprayed from the outer ring. Copper pipes are arranged inside the brass disc, and cooling water can be introduced to cool the surface of the burner. This device can form a flat flame covering a large area, making the flame temperature distribution more uniform.
Share:
Added to cart successfully
Experimental feature
1.Research on the relationship between flame shape and air-fuel ratio
2.Measurement and uniformity analysis of flame temperature distribution
Product Attributes
|
Product Model |
E303 |
Product Name |
Flat flame burner |
|
Main Materials |
Galvanized sheet, 304 stainless steel |
Dimensions |
220×200×255mm |
|
Product Weight |
6.5 kg |
Operating Environment |
Roomtemperature, relative humidity ≤ 85%, ventilation |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
