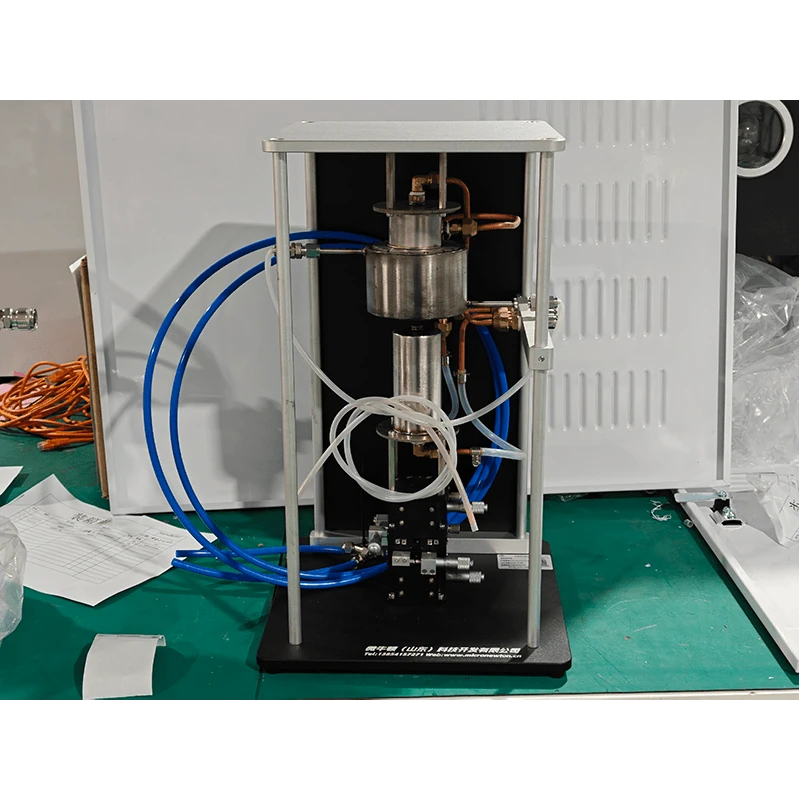

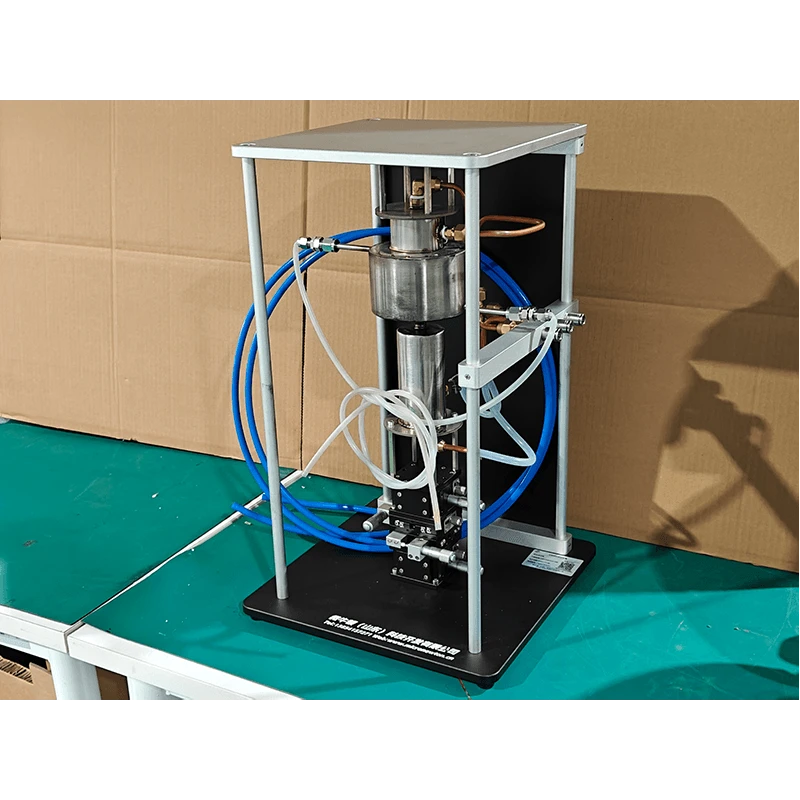

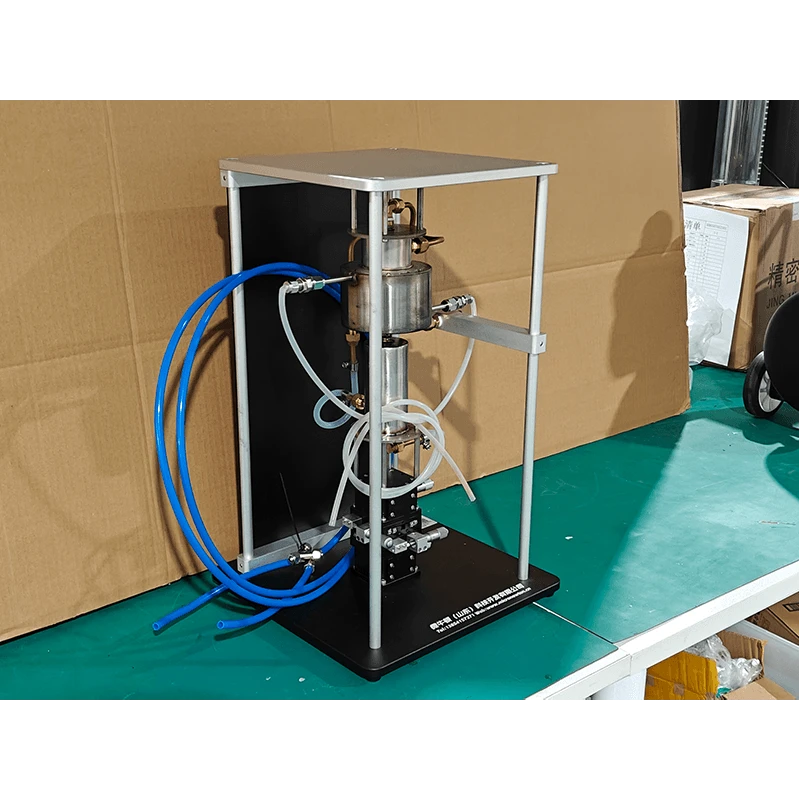

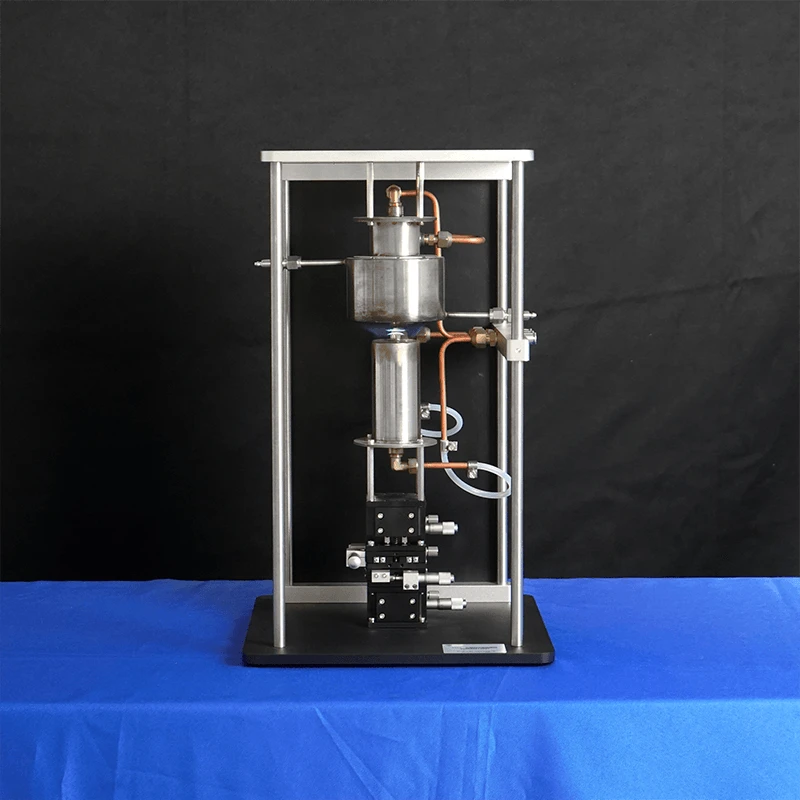

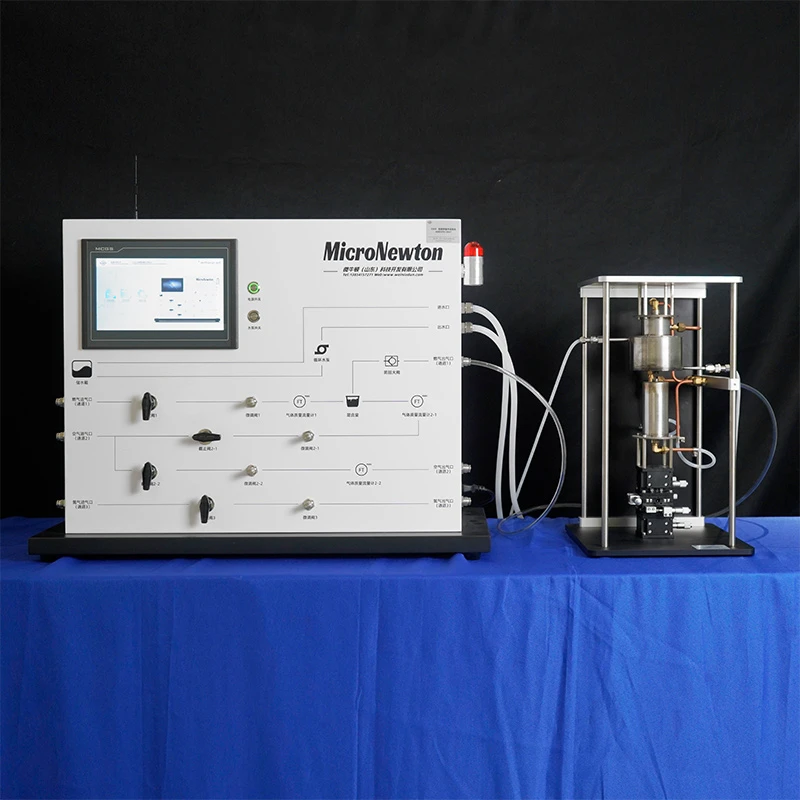

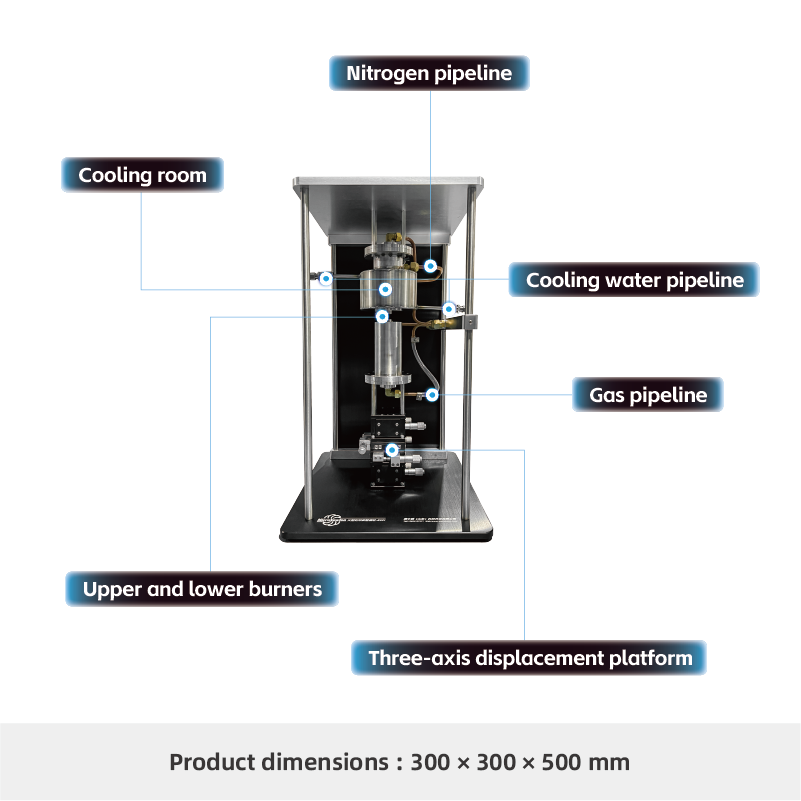

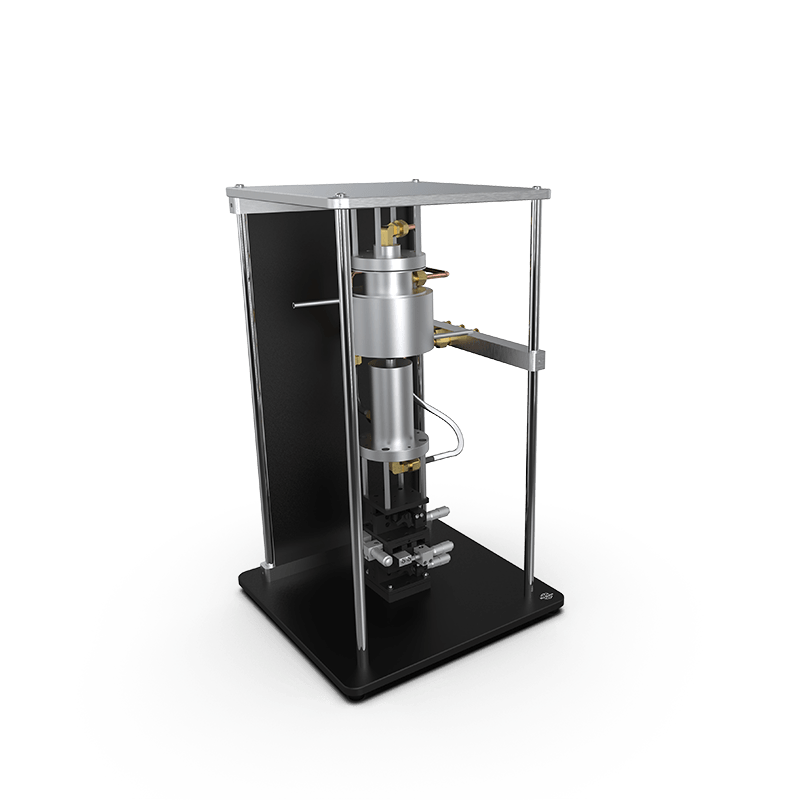

The E301 flame hedging experimental device consists of a protective gas pipeline, a cooling chamber, an upper burner, a gas pipeline, a lower burner, and a three-axis displacement platform. Connected to the E300 combustion comprehensive experimental device through pipelines, it is provided with the necessary fuel, air, nitrogen protective gas, and cooling water for the combustion process. The three-axis displacement platform has four micro adjustment micrometers, which control the lower burner to move in the x, y, and z directions respectively, in order to adjust the relative position of the upper and lower burner nozzles. By changing the fuel combustion mixture ratio and flow rate, various flames can be obtained, and research can be conducted on counter diffusion flames and counter premixed flames.
Share:
Added to cart successfully
Experimental feature
1.Experimental study on the state of counter diffusion flame.
2.Experimental study on the state of premixed flame for hedging
Product Attributes
|
Product Model |
E301 |
Product Name |
Flamehedge experiment module |
|
Main Materials |
Galvanized Steel Plate, 304 Stainless Steel |
Dimensions |
300×300×500mm |
|
Product Weight |
13.2kg |
Operating Environment |
Roomtemperature, relative humidity ≤ 85%, ventilation |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
