Combustion Science

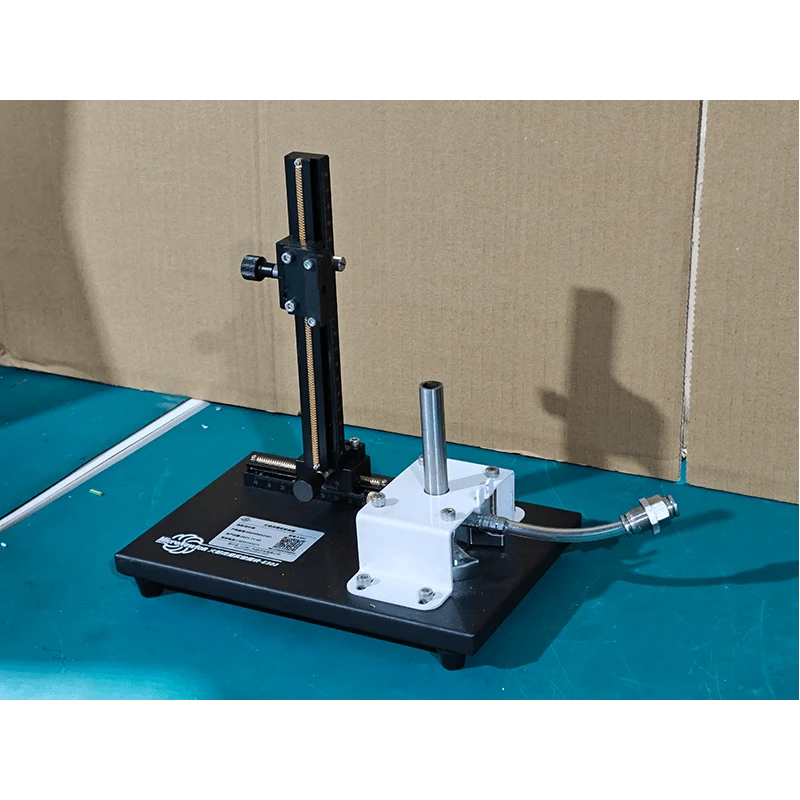

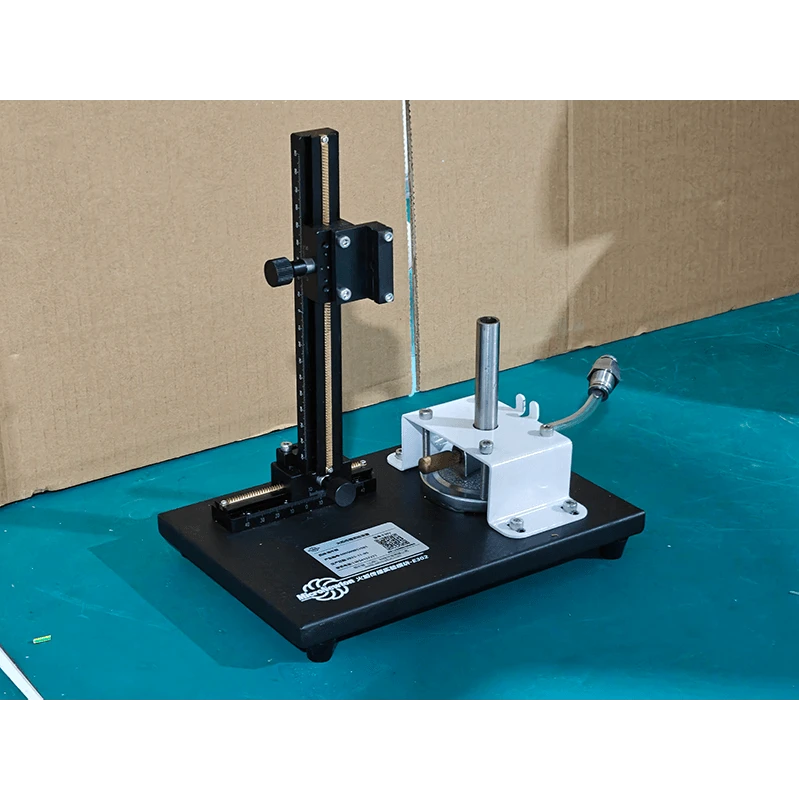

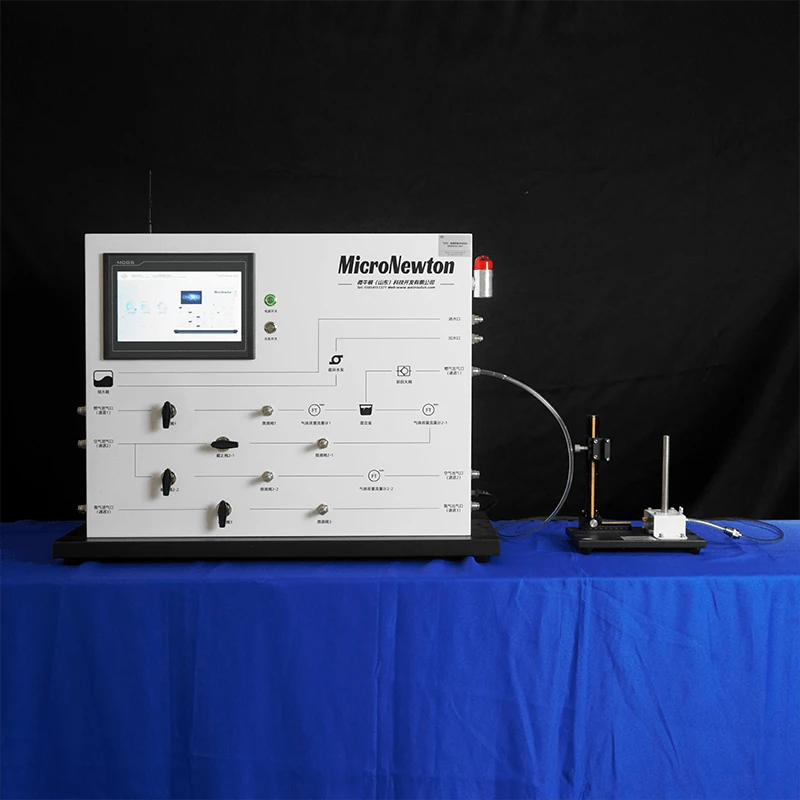

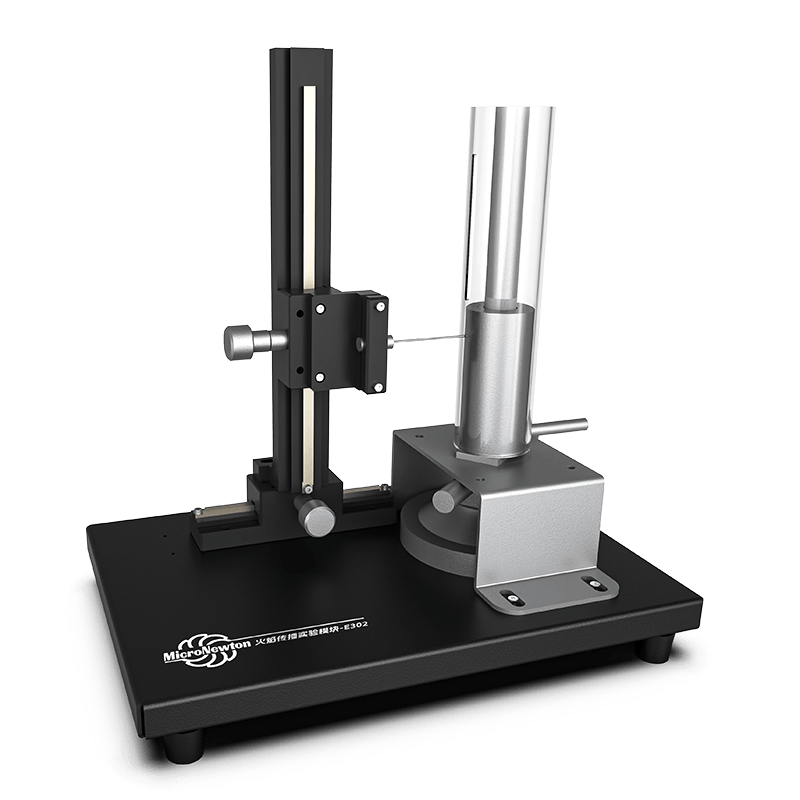

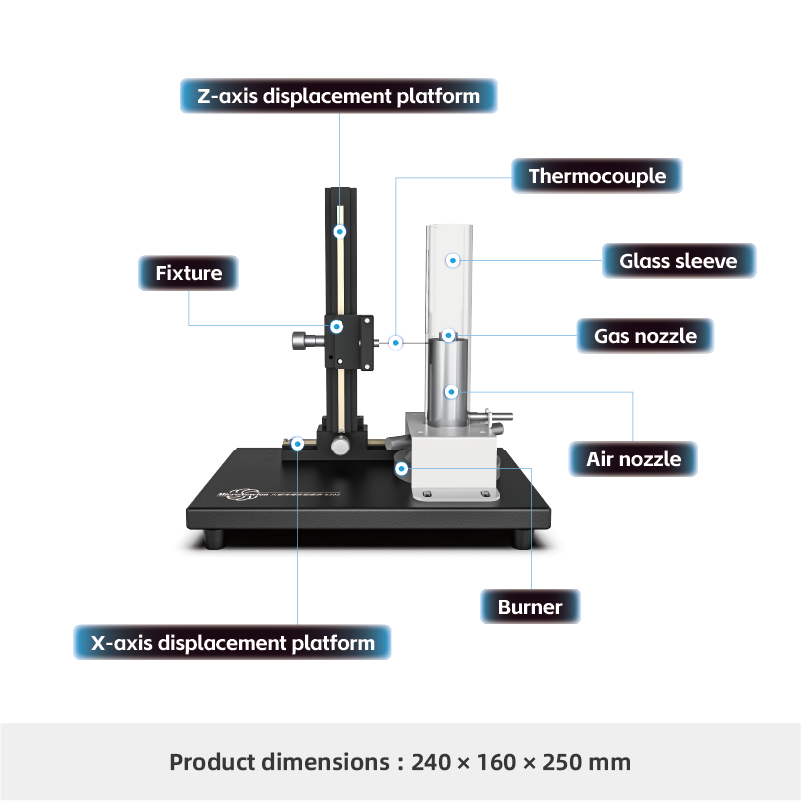

The E302 flame propagation experimental device is composed of a burner, four types of gas nozzles, three types of glass sleeves, two types of air nozzles, a displacement platform, fixtures, and thermocouples. The displacement platform on the left side of the experimental device has a scale that can measure the height of the flame. The thermocouple can be fixed and moved up and down left and right using a fixture. Connected to the E300 combustion comprehensive experimental device through pipelines, providing it with the necessary fuel and air for the combustion process. By adjusting the flow rate and fuel air mixture ratio, different nozzle sleeve combinations can be used to form various flame forms such as natural flames and Beck Schumann flames. Various combustion methods such as dynamic combustion, premixed combustion, and coaxial jet combustion can be studied.
Share:
Added to cart successfully
Experimental feature
1.Bensun flame and Smithell flame separation method
2.Determination of Stable Concentration Limit for Premixed Flames

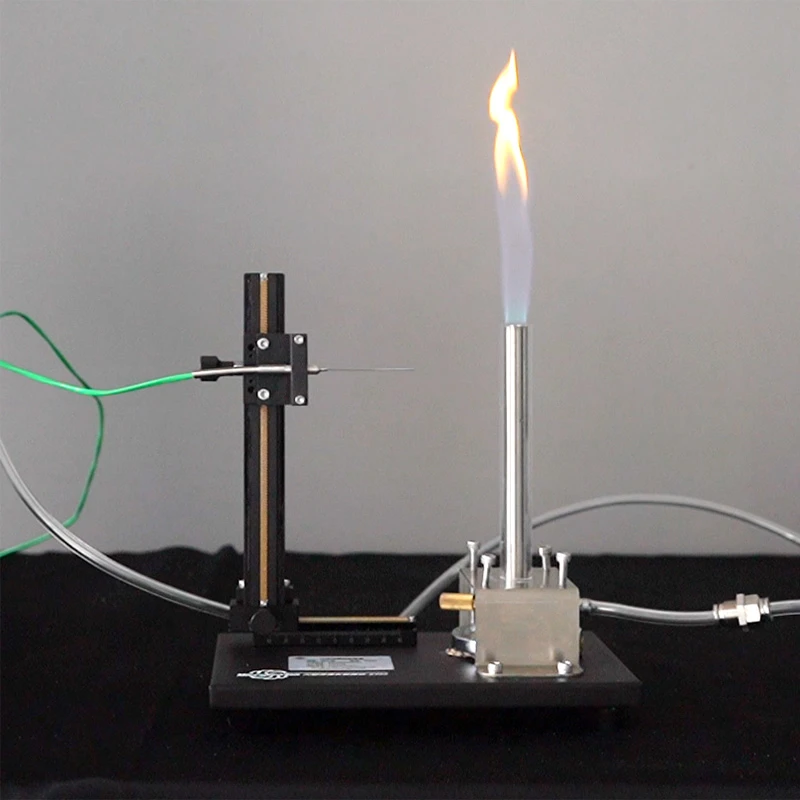

3.Jet combustion of gas fuels, determination of flame length and flame temperature
4.Determination of flame propagation speed of gas fuel by static pressure method
Product Attributes
|
Product Model |
E302 |
Product Name |
Flamepropagation experimental module |
|
Main Materials |
Galvanized sheet, 304 stainless steel |
Dimensions |
240×160×300mm |
|
Product Weight |
3kg |
Operating Environment |
Roomtemperature, relative humidity ≤ 85%, ventilation |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
