Combustion Science
The E300 Combustion Comprehensive Experimental Device is the collection and control center of the combustion series products, supporting the integration of multiple gases and different experimental modules, and obtaining various flames by changing the fuel and air mixing ratio.
Share:
Added to cart successfully
Product Introduction

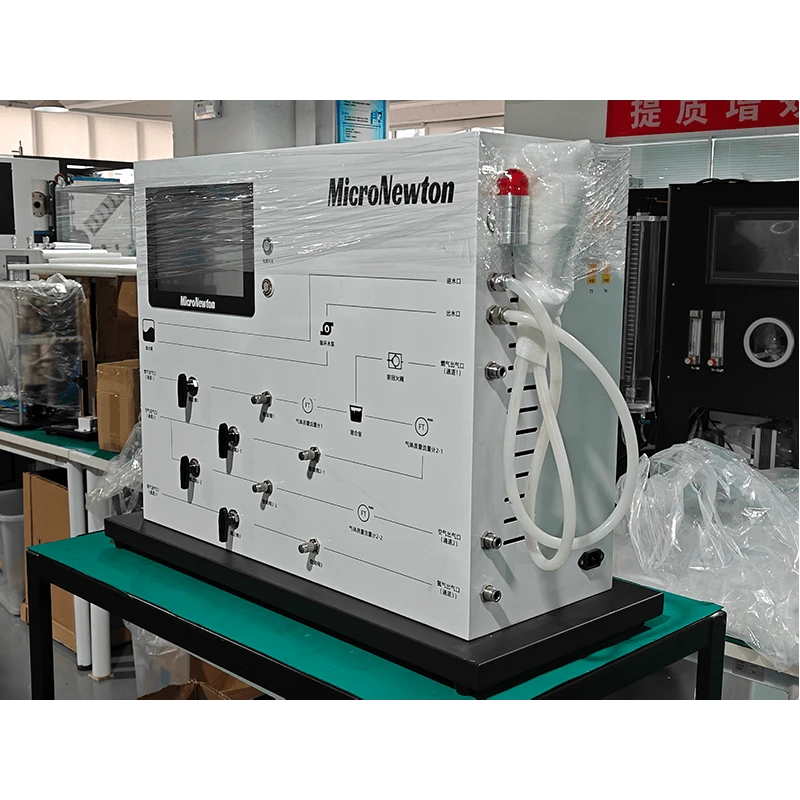

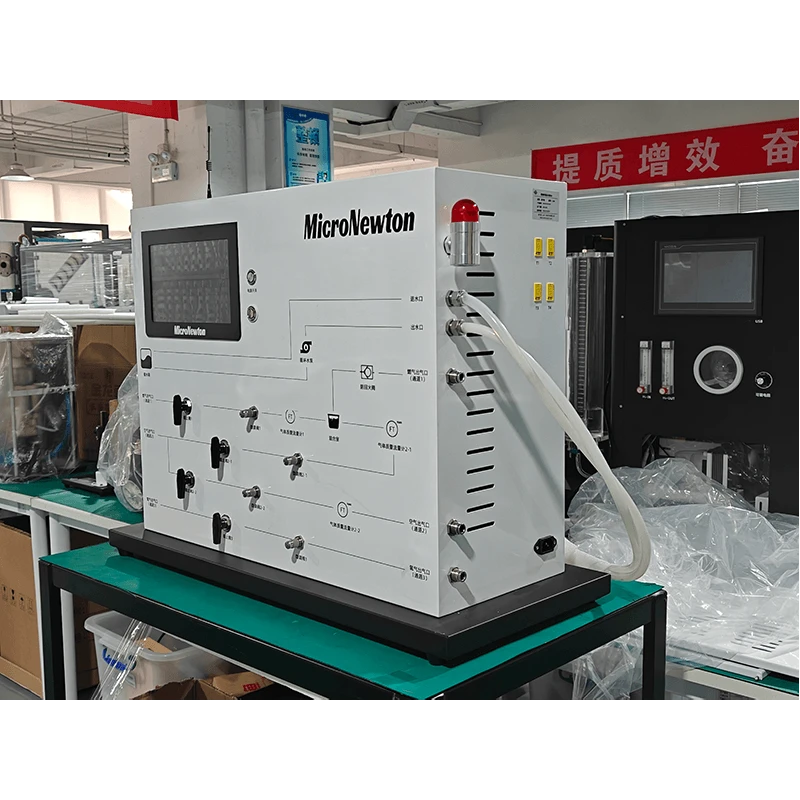

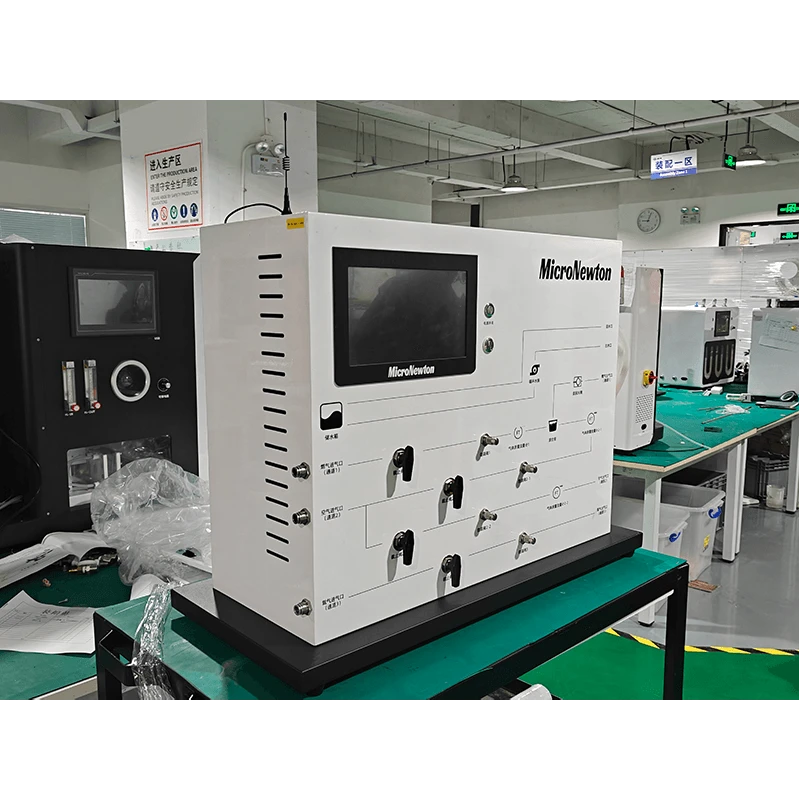

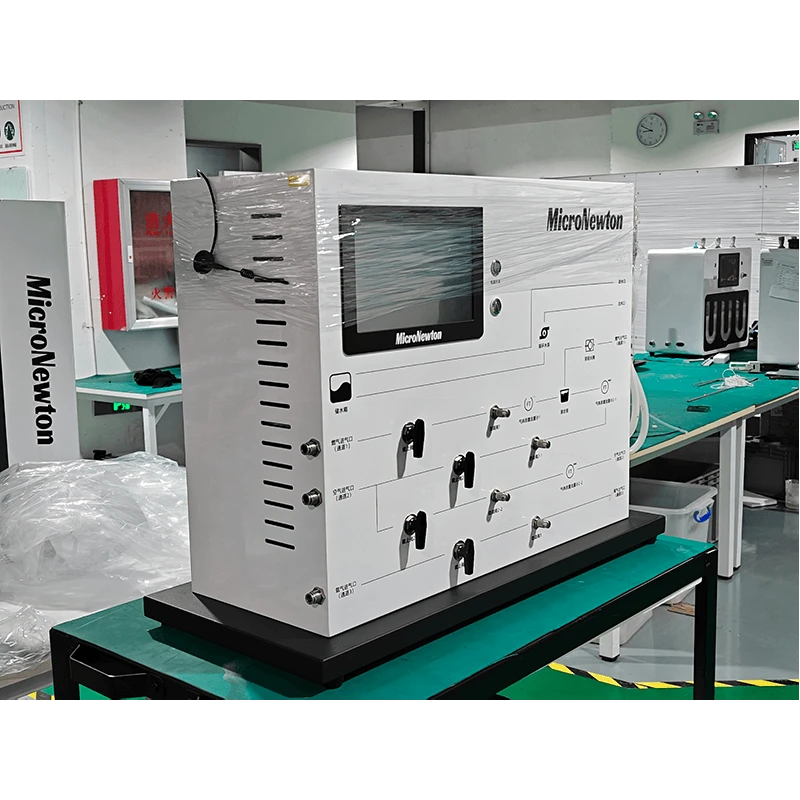

The E300 Combustion Comprehensive Experimental Device is the collection and control center of the combustion series products, supporting the integration of multiple gases and different experimental modules, and obtaining various flames by changing the fuel and air mixing ratio. This device has three main channels. The left three air inlets can be connected to gas, air, and nitrogen respectively, and they flow out from the right three air outlets. The gas flow can be adjusted through a fine tuning valve. The air channel can be divided into two, with one branch connected to the gas channel for pre mixing gas and air in the mixing chamber. The gas channel and two air channels are equipped with gas mass flow meters, which can collect the flow rate, pressure, and temperature inside the channels. The device is equipped with a built-in cooling water tank and circulating water pump, which can provide cooling water for supporting equipment. The equipment is equipped with an anti backfire valve and a gas leak detector to ensure safe use. Equipped with four thermocouple channels, it can be connected to thermocouples to measure flame temperature. The experimental data can be transmitted to the supporting tablet through the signal transmitter equipped with the device.
Experimental feature
1
Display the experimental schematic diagram.
2
Display gas flow data
3
Provide gas and air to the equipment and control the flow rate
4
Used as a universal combustion research experimental platform.
Product Attributes
|
Product Model |
E300 |
Product Name |
ComprehensiveExperimentalDevice forCombustion Science |
|
Main Materials |
Galvanized sheet, 304 stainless steel |
Specifications |
800×350×600mm |
|
Product Weight |
37kg |
Operating Environment |
Roomtemperature, relativehumidity ≤ 85%, ventilation |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz 110V ±5%, 50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
FAQ
Is your company a manufacturer or a trading company?
We are a direct source manufacturer with independent R&D, production and quality inspection workshops, and have years of expertise in the university laboratory equipment sector.
What payment methods are supported for overseas orders?
We accept T/T (Telegraphic Transfer) and irrevocable sight L/C (Letter of Credit). Formal commercial or proforma invoices are issued for all orders, with a transparent and traceable process.
What is the production and delivery cycle for the equipment?
Standard models: 45-60 days. Expedited production is available for urgent orders with priority scheduling, and the exact lead time is negotiable.
Do you support product customization?
Customization, OEM and ODM services are available. We can adjust parameters, structure, size and functions as required, and accept private labeling production.
How do you ensure the safe transport of the equipment?
Export-grade triple shockproof and moisture-proof packaging (shockproof foam + thickened carton + plywood wooden case) with warning labels attached.
Does the product come with a warranty? Are spare parts included?
All products come with a 2-year free original factory warranty, and common wearing parts are provided free of charge during the warranty period.
Overseas After-Sales Support：
• 7×24h remote technical support and free operation training with one-on-one engineer guidance;
• Free urgent air shipment of replacement parts for non-human-induced quality defects within the warranty period;
• Lifetime technical consultation and cost-price spare parts supply after warranty;
• Bilingual manuals, operation videos and experiment guides are included for easy use by beginners.
How do you control product quality before shipment?
Strict three-level quality inspection is carried out before delivery:
1. Raw Material Inspection: Full inspection of core components to control precision;
2. In-Process Inspection: Special personnel monitor each process to avoid defects;
3. Final Shipment Inspection: Power-on testing and precision calibration, with official inspection reports issued; factory inspection and remote inspection are both supported.
