Self Developed Compression Bar Stability and Stress Testing Apparatus Delivered to Shandong Polytechnic University
Share:
In material mechanics education, compression bar stability is a topic that textbooks describe in formulas but students struggle to picture. A slender column does not fail by crushing or yielding. Instead, at a critical load far below the material yield strength, it suddenly bends sideways and loses its load carrying capacity. Teaching this abstract buckling phenomenon calls for equipment that lets students watch the bar pass from straight equilibrium to lateral deflection in real time, measure the critical force themselves, and compare it against theory. MicroNewton delivered such a self developed apparatus to Shandong Polytechnic University.

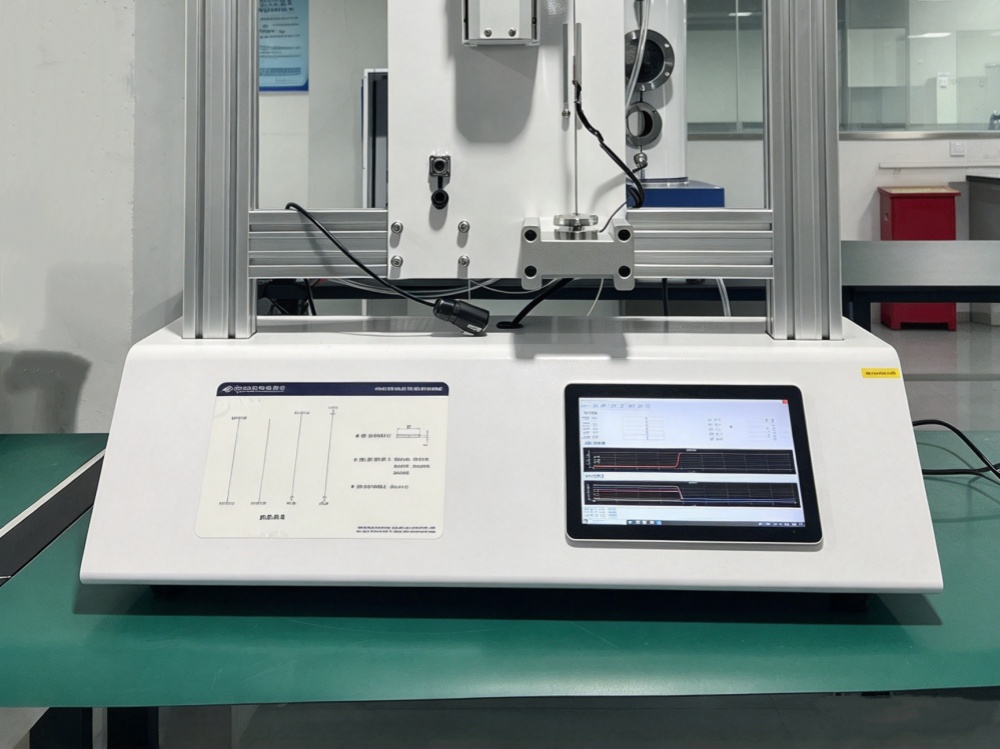

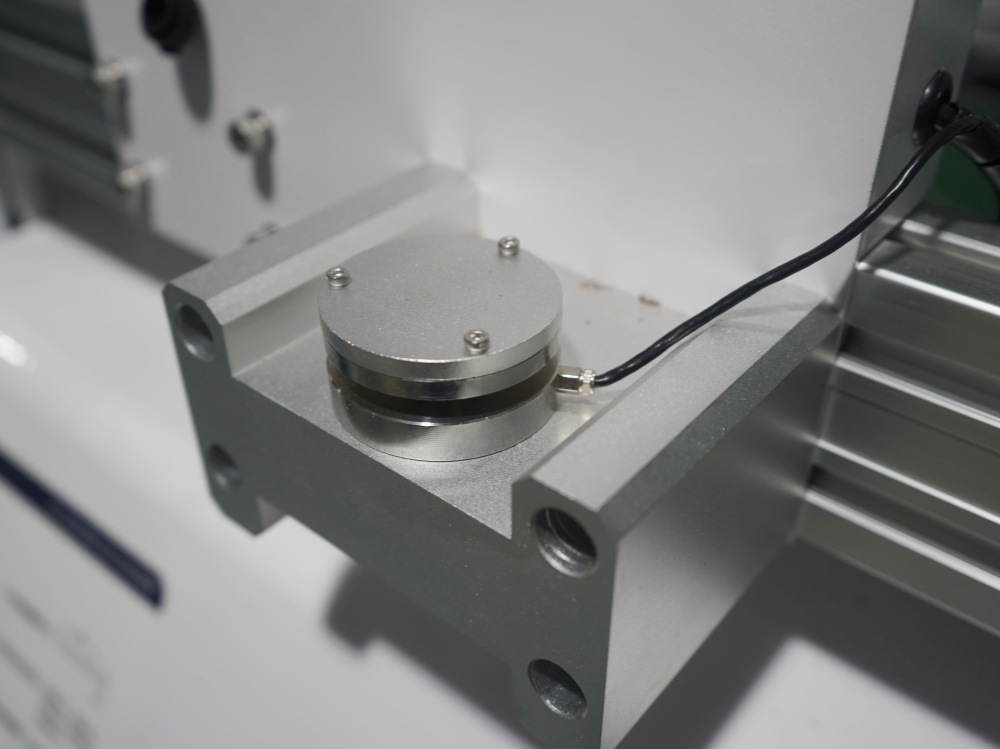

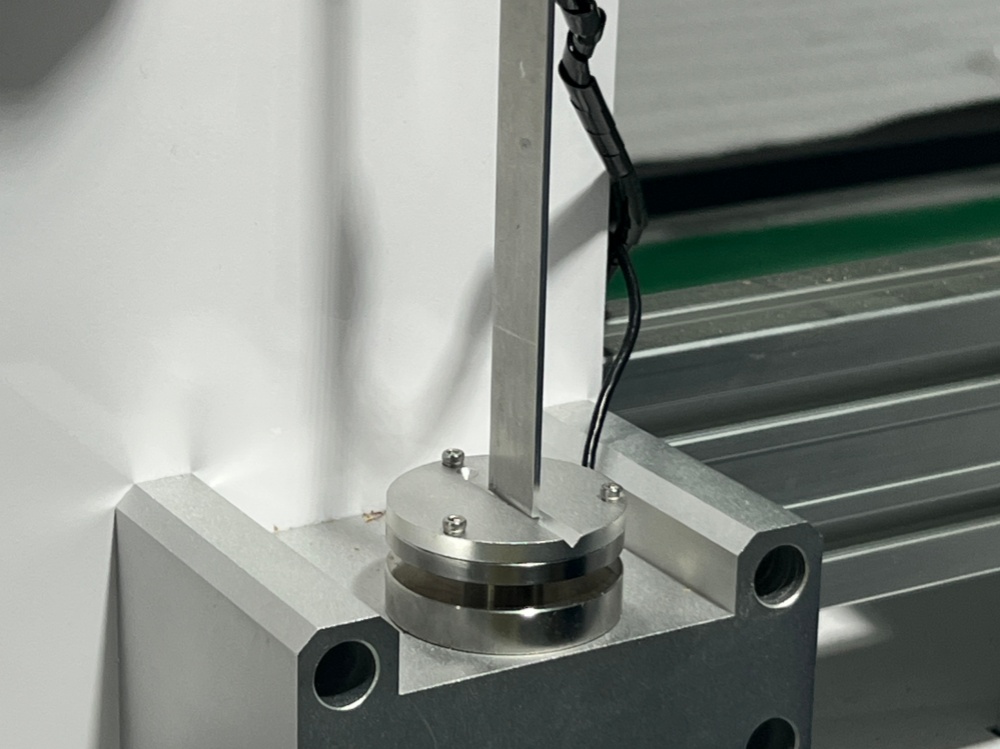

The MS10 compression bar stability critical force and stress testing apparatus is built around a rigid portal frame. Five aluminum specimens of different lengths accompany the unit, and the supports can be reconfigured to fixed, pinned, or free end conditions. A screw loading system applies axial compression gradually, while a load cell, a displacement sensor, and resistance strain gauges measure force, deflection, and strain on a 10.1 inch touchscreen.
The experiments focus directly on teaching outcomes rather than dense specifications. Students determine the critical load Fcr by slowly increasing axial force and watching for the point where lateral deflection grows sharply while the load stops rising. They verify Euler's formula by testing bars of different lengths and comparing measured critical force against the theoretical value, then discuss error sources such as initial curvature and material non uniformity. They change the end supports from hinged to fixed to free, observing how the length factor shifts the critical load. They watch large deflection post buckling behavior after the critical point. In the stress configuration, bonded strain gauges let them compute stress along the bar and connect strain measurement back to Hooke's law.
By swapping specimens and support types, students explore how slenderness ratio governs whether a column fails by strength or by stability. The whole experiment error stays within five percent, which gives results credible enough for teaching and error analysis.
The apparatus serves civil engineering, mechanical engineering, and applied technology students. These students need to move beyond memorizing formulas and actually experience buckling, critical force, end support effects, and strain measurement. They learn the difference between strength failure and stability failure, the meaning of slenderness ratio and length factor, how Euler's formula applies and where its limits lie, how to operate load and displacement sensors, how to compare experimental data with theory, and how to analyze experimental error. This hands on understanding feeds directly into structural design, where columns, struts, and machine components must be checked for stability, not just strength.
The MS10 reflects MicroNewton's ability to design teaching equipment from the teaching need outward. Rather than adapting a generic testing machine, we built this unit around the specific buckling experiments material mechanics courses require: interchangeable end supports, a range of bar lengths, integrated force and strain measurement, and a compact frame that students can operate independently. This self development approach lets us tune geometry, sensor range, screen interface, and experiment set to what polytechnic and university programs actually teach, and to add modules such as stress distribution testing where a program needs more depth.
Explore MicroNewton self developed material mechanics teaching equipment, including compression bar stability, stress, and strain test apparatuses. Contact us for your laboratory requirements.
